Product Details:
|
| Type: | Freight Lift | Load: | 3000~5000kg |
|---|---|---|---|
| Speed: | 0.25m/s | Business Type: | Manufacturer |
| Pit: | 1600mm | Warranty: | 12 Months After Shipping |
| Product Name: | Passenger Lift | Control System: | VVVF Elevator Control System |
| Flooring: | PVC/marble | Car Wall: | Mirror Stainless Steel |
| Model: | Freight Lift | Product: | Freight Lift |
| Highlight: | airport walking escalator,building lifts elevators |
||

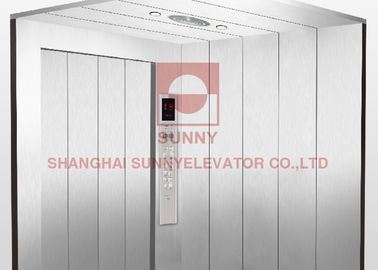

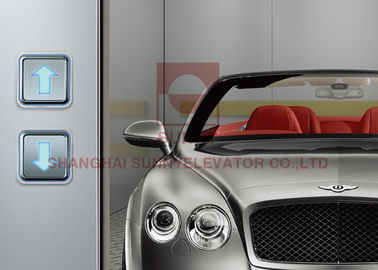

Large Space & Load Automobile Freight Goods Car Elevator with Opposite Doors
With economic development, people's living quality is keeping to improve, the car gradually into the homes of ordinary families. FUJI Elevator series car elevator,. make full use of FUJI Elevator years car elevator technology, combined with the domestic market and the development of the machine room car elevator and machine roomless car elevator. FUJI Elevator machine room car elevator sare using the latest VWVF technology dedicated to the transpot car elevator and overall elevator system to improve floor less restricted, and ensure the millimeter accurate flat layer,
comfortable, low noise, technology innovation, further reducing the energy consumption of more than 30%. FUJI Elevator machine roomless car elevator are using machine roomless configuration, under speclal circumstances provides a flexible solution for designers. The itelligent microcomputer control system, high strength and strong design, avolded by car to uneven traction system load increase and produce noise and capsules jtter, make the discrepancy of the car more safe. Car elevator is widely used in the parking lot, garage, underground garage and other places.
Car elevator specifications
|
Load (kg) |
Speed (m/s) |
Door Open type |
Net door opening WxH(mm) |
Exterior size of car WxD(mm) |
Shaft size(mm) | Machine room size(mm) | ||
| WxD | PIT | OH | WxDxH | |||||
| 3000 | 0.45 | Four Panel Center Opening | 2400x2200 | 2700x5800 | 4100x6160 | 1600 | 4800 | 4100x6160x2500 |
| 5000 | 0.25 | Four Panel Center Opening | 2600x2200 | 3500x7200 | 4750x7560 | 4750x7560x2500 | ||
| 0.5 | ||||||||
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
