Product Details:
|
| Name: | Elevator Limit Switch | Type: | Elevator Parts |
|---|---|---|---|
| Current: | AC/2A DC/0.3A | Approvals: | CE |
| Connection: | PUV | Packing: | Standard Packing |
| Product Name: | Elevator Limit Switch | Applicable: | Elevator Equipment |
| Warranty Time: | 12 Months | Transportation: | DHL TNT FEDEX |
| Model: | Elevator Limit Switch | ||
| High Light: | 380V Elevator Limit Switch,1000A Elevator Limit Switch,PUV Connection Elevator Limit Switch |
||

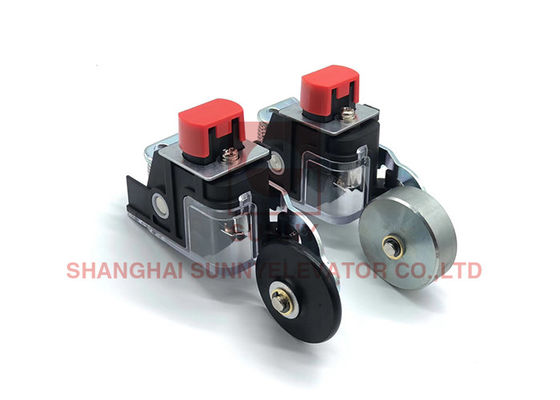

380V Elevator Limit Switch Elevator Electrical Parts 1000A For Lift Parts
Elevator limit switch (SN-S3-1370B)
1. Series elevator switch, including limit switch, switch for landing door, passive door switch, wheel switch.
2. Obtained ISO9001 certificate.
3. Self-cleaning double break contact for long service life.
4. For use in controlling the closure position of lift doors or as switch for locking mechanism of automatic doors safety switch with positive contact.
| Product Name | Model NO. | Technical Reference |
| Switch for hoistway | SN-S3-B1370 | Insulation voltage:380V Rated current:AC2A,DC0.3A Rated Voltage:AC220V,DC110V Temperature:-5°C~+40°C IP class:IP20 Breaking capacity:1000A |
| SN-S3-B1370 new style |
||
| SN-S3-B1371 new style |
||
| Snap Switch | UKS | Type:AC-15 IP class:IP65 Operation Force:≤15N Rated voltage: DC40V/DC80V/AC220V Rated current:4A/2A/4A |
There are two mechanical limit switches for hoistway access. One switch (top) stops the car when the car top is level with the top landing sill. The second switch (bottom) stops the car when the toe guard is level with the lowest landing header. All tractionelevator installations that fall under the ANSI A17.
| Product | elevator limit switch |
| Size | all size available |
| Lead time | within 5 working days |
| Pakcing | packed in carton or as your requirement |
