Product Details:
|
| Name: | Electric Brake Device | Power: | 450W |
|---|---|---|---|
| DC Voltage: | AC220V/AC110V | Dimension: | 190*130*125 |
| Weight With Battery: | 4.2kg | Transportation: | Air Sea Express |
| Warranty Time: | 12 Months | Type: | Electric Brake Device |
| Model: | Electric Brake Device | ||
| High Light: | 450W Electric Brake Device,AC110V Elevator Electrical Parts,125mm Electric Brake Device |
||
Electric Brake Device Which Is Developed For Power Failure Or Fault
Description

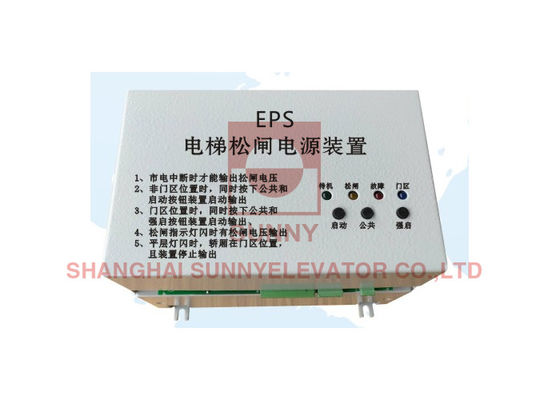

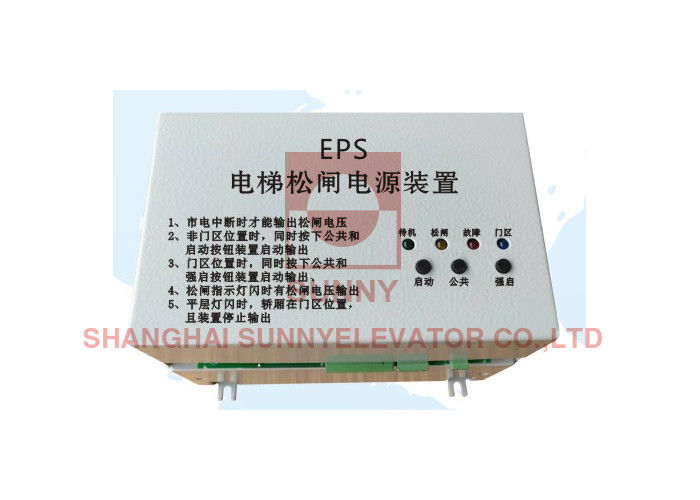

SN-EPS is a kind of electric brake device which is developed for power failure or fault, When the device detects the door lock circuit is normal, Just press and hold the device start button can open the elevator brake to the door area, And automatically stop running, Open the door to open the door by professionals.
Product Features
1. Small size and appearance
2. Quick and easy installation
3. The operation is simple and safe
4. Automatic charging and battery maintenance
| Model | SN-EPS |
| Imput power supply | AC220V/AC110V 50Hz/60Hz |
| Charging time | ≤4 hours |
| Battery charging current | 1.2A |
| Battery charging voltage | 14.5V-15.5V |
| Brake voltage output | DC 110V |
| Out power | 450W |
| Dimension | 190*130*125 |
| Specifications | 12V/7AH*1 |
| Weight with battery | 4.2kg |
Note: since different brands of elevators have different door motor, brake, motor capacity and other equi pment power consumption, the selection of ARD model should accord to the actual power demand of the field elevator.
