Intelligent Control Elevator Electrical Parts 6m/S Elevator Integrated Controller

Elevator Integrated Controller With Intelligent Control System

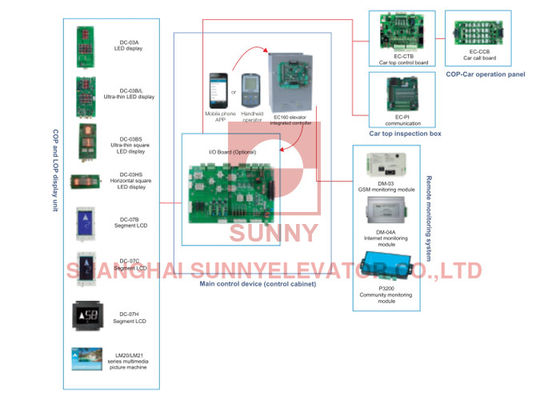

EC160 series elevator integrated controller is a new elevator intelligent control system developed under the design concept that integrates drive, control and network communication together. It adopts advanced closed loop vector control technology, elevator itelligent control technology and network communication technology, integrating elevator drive, control and management together.

Main Features

Resources reducing in elevator installation, debugging, operation and management
Max. speed: 6m/s, Max floor: 64
Inelligent network group control can control 8 elevators at the same time
Embedded high-performance starting compensation technology of non-weighing sensor
CANBUS for communication in the car, MODBUS or CANBUS for external communication
Low voltage emergency rescue mode of AC220V single-phase UPS, light load direction search
Safety enabling hardware input conform to EN81 standards

Special Functions

Integrated with control and I/0 interface, the compact structure saves installation space for control cabinet
The integration of encoder interfaces of synchronous and asynchronous motors satisfies stock generalization
Hand terminal: independent HMI, online Chinese-English help system, functions of debugging permission management, debugging trace management, parameters uploading/downloading and computer data copying
Add TCP/IP internet module for remote debugging or control
Support TCP/IP protocol remote monitor
Support both serial and parallel communication
Built-in PG card,support both SIN/COS and incremental encoder

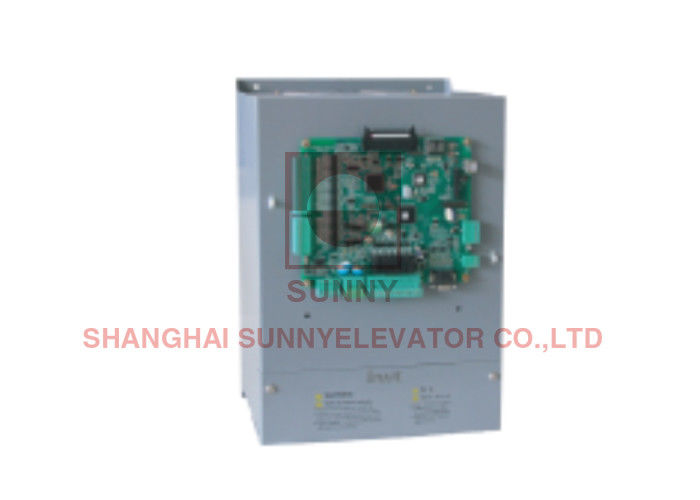

Appearance and Installation Dimensions

Installation Dimensions

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
