Product Details:
|
| Name: | Elevator Door Controller | Input Voltage: | 3 PH AC380V |
|---|---|---|---|
| Type: | Elevator Parts | Applicable: | Elevator Equipment,Passager Elevator |
| Power: | 200W | Packing: | Standard Packing |
| Transportation: | DHL TNT FEDEX | Applicable Elevator: | Elevator Parts |
| Model: | Elevator Door Controller | Product: | Elevator Door Controller |
| High Light: | Integrated Elevator Door Controller,Closed Loop Elevator Door Controller,Servo Control Elevator Door Controller |
||

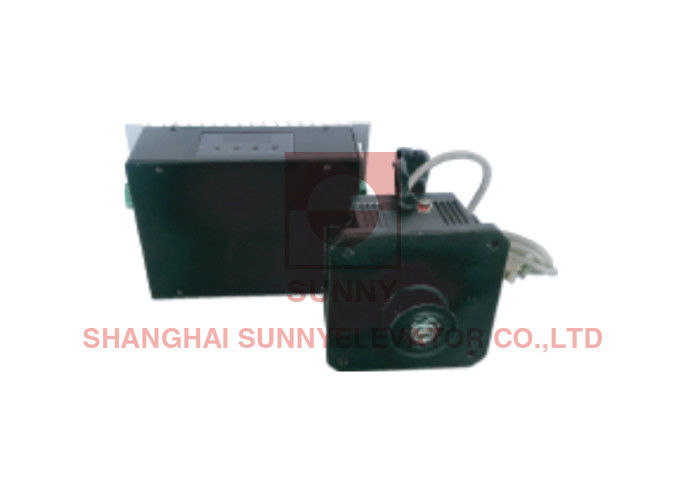

EC10 Series Integrated Door Controller
About the Product
EC10 Series Integrated Door Controller using closed loop servo control technology, integrate car top control panel and door control as an elevator door system drive controller. It is customized for EC100 / EC160 series elevator integrated controller, which make the debugging and maintain easily.
Technical Features
Use closed loop servo control technology, due to high velocity response ability
Integrated car top control board, reducing the wiring, simple and convenient debugging
Precise of torque control, having door open/ close torque protect function
Intelligent door width self learning, is easy to use
Advanced limit function ensure the door machine is running smoothly and accurate
Friendly parameter setting interface, convenient modify parameter
Various communication interfaces: Support CAN, MODBUS, RS232
Specification
| Item | Model | Rated Power(W) | Brake(A) | Contactor(A) | Main wiring(mm2) |
| Door Controller | EC10-OR2G-S2 | 200 | 10 | 10 | 2.5 |
| PM Motor | DL 120-S16 | 50 | - | - | - |
Dimension

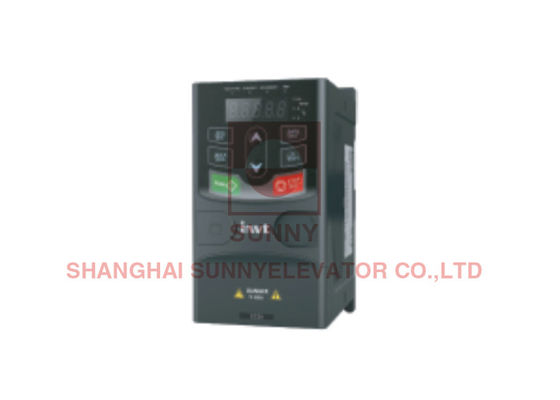

EC20 Series Elevator Door Controller
About the Product
EC20 Series Elevator Door Controller adopts international advanced vector control algorithm, can drive asynchronous motors, supports speed control mode, distance control mode 1 and 2, and it is widely used in automatic doors for elevators, shopping malls and supermarkets.
Technical Features
Excellent control performance
Sensorless vector control and closed loop control for induction door motor
Various control modes
Available speed control mode, distance control mode 1 and 2, improving application range
Mini structure design
Smaller size, saving installation space
Various interfaces and strong functions
Standard embedded CAN communication interface
Multiple mounting methods
Compatible with wall mounting and rail mounting, easy to install
Easy to use and maintain
The fan can be assembled and disassembled separately, easy to maintain
Specification
| Model | Rated Output Power(W) | Rated input current(A) | Rated output current(A) | Gross weight(kg) | Dimension(mm) |
| EC20-OR4G-S2 | 400 | 6.5 | 2.5 | 1.1 | 215*125*180 |
| EC20-OR7G-S2 | 750 | 9.3 | 4.2 | 1.1 | 215*125*180 |
Dimension
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
