Product Details:
|
| Name: | Elevator Car Control Board | System: | INVT |
|---|---|---|---|
| Used: | Elevator Parts | Hole Size(mm): | 4 |
| Voltage: | DC20V | Original: | Yes |
| Application: | Elevator | Warranty Time: | 12 Months |
| Model: | Elevator Car Control Board | Type: | Elevator Car Control Board |
| High Light: | 4mm Hole Car Control Board,INVT System Car Control Board,DC20V Elevator Car Control Board |
||
4mm Hole Passenger Elevator Car Control Board For INVT System

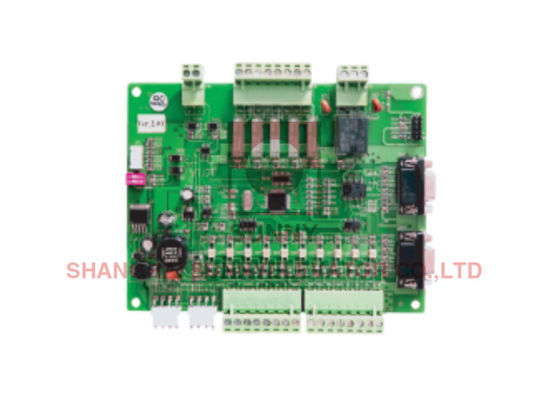

EC-CTB Car Top Control Board
Product Features
CANBUS communication
RS485 communication available, provides a standard RS485 communication protocol to connect with third-party multimedia displays and voice announcer
RS232 communication available
Analog weighing input and switching value weighing modes available
Up to 64 floors control
Arrival bell output
llumination energy-saving control
Double- door control
| Appearance dimension(mm) | Installation dimension(mm) | Hole size(mm) |
| 162x125 | 152x115 | 4 |

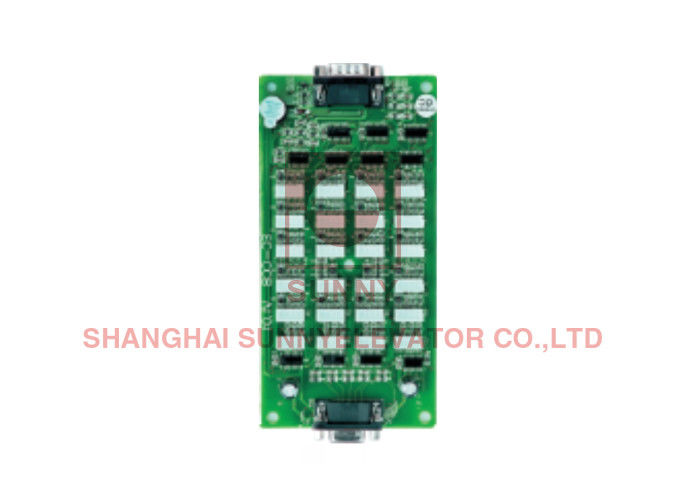

EC-CCB Car Operation Board
Product Features
One board every elevator at least, the first CCB supports 16 floors, one board every 20 floors when more than 16 floors
Driver, independent, bypass or non-stop switch, driver communication, door-opening delay button input etc.
| Appearance dimension(mm) | Installation dimension(mm) | Hole size(mm) |
| 158x79 | 148x68 | 4 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
