DC20V Elevator Display Board For Elevator GCL Group Control System

DC20V Elevator Display Board For Elevator GCL Group Control System

DC20V Elevator Display Board For Elevator GCL Group Control System
DC20V Elevator Display Board For Elevator GCL Group Control System
DC20V Elevator Display Board For Elevator GCL Group Control System
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Elevator Display
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $10~50
Packaging Details: Standard Export Package
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Name: Elevator Display System: INVT
Used: Elevator Parts Hole Size(mm): 4
Voltage: DC20V Original: Yes
Application: Elevator Warranty Time: 12 Months
Model: Elevator Display Board Product: Elevator Display Board
Product Name: Elevator Display Board
High Light:

DC20V Elevator Display Board

,

GCL Group Control Elevator Display Board

,

4mm Hole Elevator Display Board

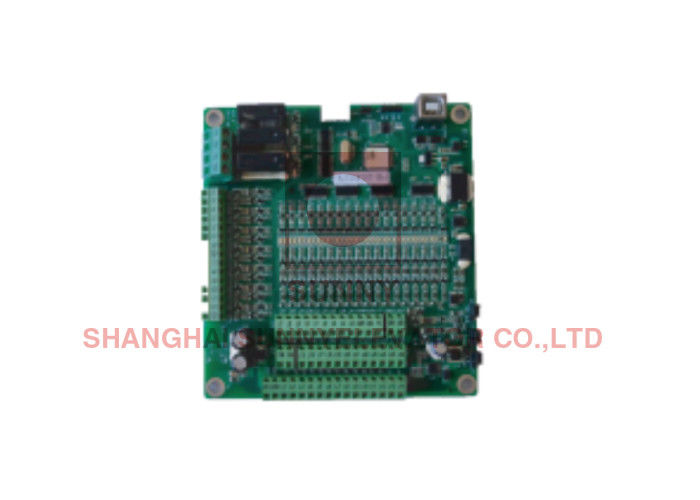

EC-PI Communicaiton Board

Product Features

EC-PI is the serial-to-parallel I0 board of EC series integrated controller
One board supports maximum 8 floors under full collective mode,16 floors under down collective mode,and supports casecade to extension
Programmable inputoutput: 3 relays, 13 optocouplers, 35 low-voltage inputs
CAN communication, flexible installation



Appearance dimension(mm) Installation dimension(mm) Hole size(mm)
130x120 123x113 4

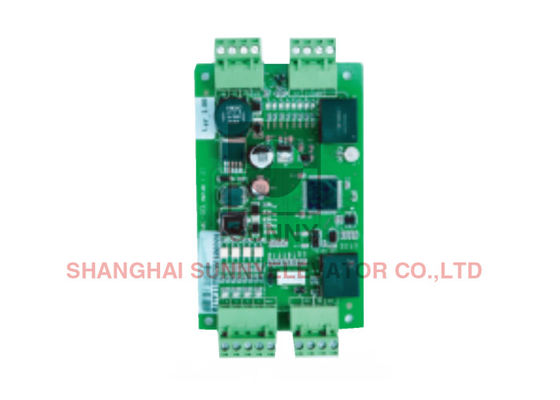

MC-GCL Elevator Group Controller

Product Features

GCL group control system support max 8 elevators
GCL group control system operation mode: up passenger-flow rush hour,down passenger-flow rush hour, normal, idle
Optimized dispatch, optimized running elevator
Shortest and longest waiting time
Calling control of long time waiting
Passenger-flow rush hour service, self-running
Energy-saving and group control fire fighting operation
Group control spare power operation
Decentralized processing control



Appearance dimension(mm) Installation dimension(mm) Hole size(mm)
121.9x76.2 111.1x64 4



DC20V Elevator Display Board For Elevator GCL Group Control System 0



DC20V Elevator Display Board For Elevator GCL Group Control System 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
