Product Details:
|
| Name: | Elevator Display | System: | INVT |
|---|---|---|---|
| Used: | Elevator Parts | Hole Size(mm): | 4 |
| Voltage: | DC 24V | Original: | Yes |
| Application: | Elevator | Warranty Time: | 12 Months |
| Model: | Elevator Segment Display | Product: | Elevator Segment Display |
| High Light: | INVT System Elevator Segment Display,High Brightness Elevator Segment Display,DC 24V Elevator Segment Display |
||

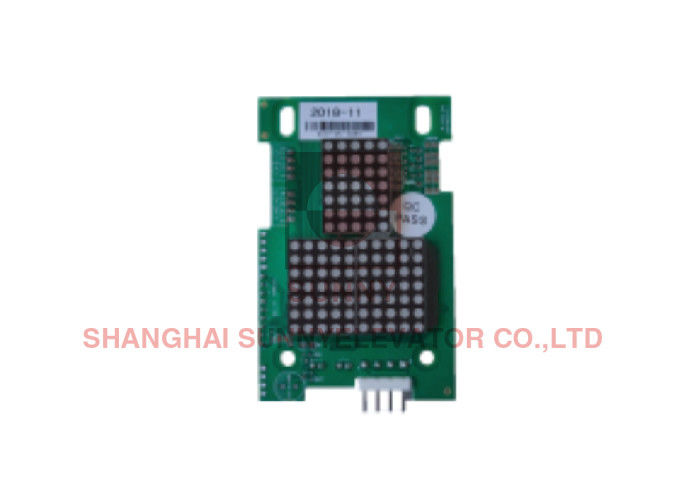

DC-03S Dot-matrix LED Display
Product Features
Red round dot-matrix LED
CANBUS communication
Can display all characters of ASC
Function for hall call, parking, fire
Support output for arrival lantern
| Appearance dimension(mm) | Installation dimension(mm) | Hole size(mm) |
| 85x50x14.1 | 72.4x42 | 4 |
DC-031 Dot-matrix LED Display
Product Features
White round dot matrix LED, high brightness
CANBUS communication
Ultra-thin design
Function for hall call, parking, fire, overload, maintenance
| Appearance dimension(mm) | Installation dimension(mm) | Hole size(mm) |
| 144x70x12.5 | 134x56 | 4 |
DC-03E Segment LED Display
Product Features
DC 24V power supply, 32-bit processor
CANBUS communication, 1-digit LED display, applicable to the hall of home elevators or external call in group control
Display the information of floor, inspection and full load
Input ports of calling and locking
Output port of 4-digit parallel display, Max. address: 15
Output of arrival lamp or gong is optional
| Appearance dimension(mm) | Installation dimension(mm) | Hole size(mm) |
| 65x45x14 | 59x39 | 4 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
