Passenger Elevator Safety Components Elevator Hydraulic Buffer

Safety System Parts Elevator Hydraulic Buffer For Passenger Elevator

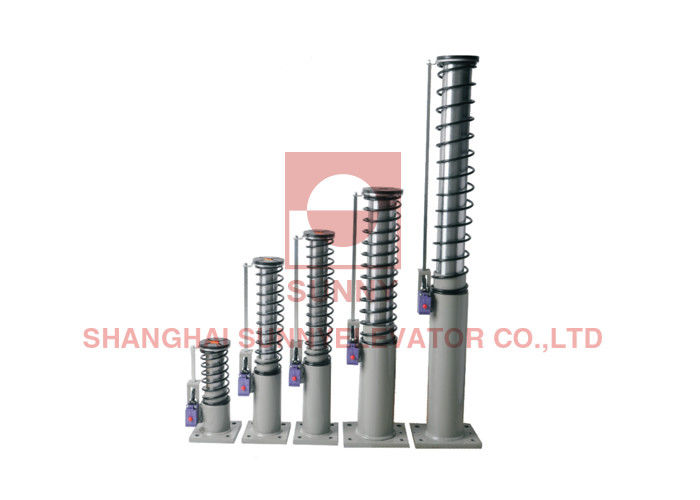

Buffer YHC SERIES

Model	HI(mm)	V(m/s)	(P+Q)1(kg)	H(mm)	D(mm)	L
YHC80	80	1.0	600~3000	279	83	0.26
YHC175	175	1.6	600~3000	526	83	0.57
YHC206	206	1.75	600~3000	607	83	0.68
YHC275	275	2.0	600~4000	734	108	1.6
YHC425	425	2.5	600~4000	1095	108	2.5

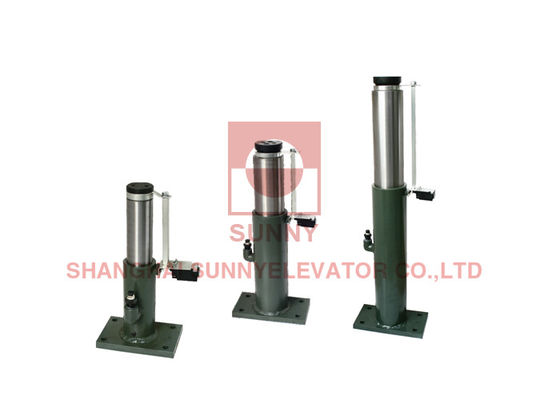

Model	Max(P+Q)kg	Minimum(P+Q)kg	Speed(m/s)	Plunger stroke(mm)	Total free state height(mm)	L	(V1)m/s
OB10	2500	700	1.15	100	385	0.4	1
OB16	5300	700	1.84	175	625	1.7	1.75
OB20	5300	700	2.30	290	915	2.6	2
OB25	5300	700	2.88	435	1300	3.7	2.5

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
