Product Details:
|
| Name: | Elevator Control Cabinet | Power Range: | 5.5 - 22kW |
|---|---|---|---|
| Speed: | ≤2.5m/s | Safety Standard: | EN81 |
| Power Supply: | 3 Phase , AC380~415V , 50/60Hz | Transportation: | Sea Transportation |
| Usage: | Mr & Mrl | Original: | CHINA |
| Model: | Elevator Control Cabinet | Type: | Elevator Control Cabinet |
| High Light: | Step Lift Elevator Control Cabinet,2.5m/S Elevator Control Box,Elevator Control Box 22kW |
||
The elevator control cabinet is the device to control the operation of the elevator. It is usually installed in the control room. STEP elevator control cabinet supports simplex control, duplex control and group control. The control system is designed according to modern technology, under strict standards. Easy to install, Ability to control up to 128 floors and maximum speed of 6 m/s.
Simple Structure
Innovative design of door structure, improving cooling effect in cabinet.
C7000 control cabinet directly molded, lighter and stronger, the same dimension from 5.5kw-22kw
6 Patented Technologies
C7000 control cabinet won 1 invention patent, 2 appearance patents and 3 practical model patents

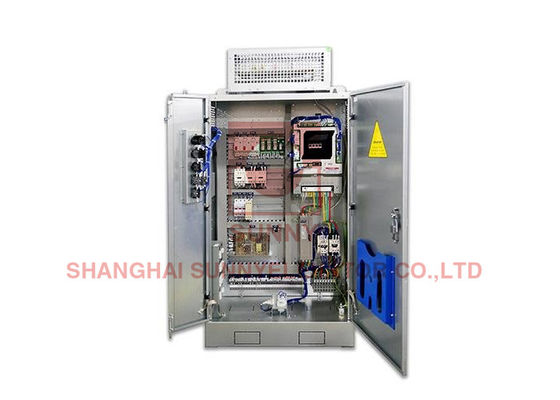

MR Technical Indicators
| Model : | C7000 |
| Power supply: | 3 phase , AC380~415V , 50/60Hz |
| Rated power : | 5.5 - 22kW |
| Rated speed : | ≤2.5m/s |
|
Motor type : |
Synchronous/Asynchronous |
| Motor Brake : | DC110V , ≤3A |
| Illumination : | AC220V |
|
Control Method : |
Single / Duplex / Group Control |
| Dimension(mm) : | 1184*420*200 |
| Installation : | Ground mounted /Wall mounted |
MRL Technical Indicators
Model : C7000
Power supply: 3 phase , AC380~415V , 50/60Hz
Rated power : 5.5 - 22kW
Rated speed : ≤2.5m/s
Motor type : Synchronous/Asynchronous
Motor Brake : DC110V , ≤3A
Illumination : AC220V
Control Method : Single / Duplex / Group Control
Control Cabinet Dimension(mm) : 1780*400*220
Brake Resistor Cabinet Dimension(mm) : 420*255*105~420*255*243
Installation : Wall mounted
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
