AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous

AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous

  • AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous
  • AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous
AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: ISO9001
Model Number: Elevator Control Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Control Cabinet Power Range: 5.5 - 22kW
Speed: ≤2.5m/s Safety Standard: EN81
Power Supply: 3 Phase , AC380~415V , 50/60Hz Transportation: Sea Transportation
Usage: Mr & Mrl Original: CHINA
High Light:

AC220V Elevator Integrated Controller


2.5m/S Elevator Integrated Controller


Elevator Integrated Controller 5.5kW



Elevator Integrated Control Cabinet KF20M


Technical Indicators


Model : KF20M
Power supply: 3 phase , AC380~415V , 50/60Hz
Rated power : 5.5 - 22kW
Rated speed : ≤2.5m/s

Motor type :

Motor Brake : DC110V , ≤3A
Illumination : AC220V
Standard : EN81-20
Environment : -10℃-45 ℃
Cabinet material : Galvanized sheet

Control Method :

Single / Duplex / Group Control
Dimension(mm) : 1780*400*220
Brake resistor cabinet dimension(mm) : 420×255×117~420×255×255
Installation : Wall mounted


Model MCP-ST/B6000
Machine room configuration Small machine room/ villa elevator
Power input three-phase 380 ( 220) 50/60 HZ; single-phase 220V 50Hz
Environmental temperature ﹣10- +45℃
Installation mode Floor type
External interface forms AMP plug-in
Adaptive brake specifications DC110V<4A /DC200V /AC220V <2A
Adaptive door machine type AC220V frequency conversion door machine, < 1A
Power of drive components ≤AS380 5.5kW
Dimension (high X width X thickness) 700x 400x 250
Resistance box configuration Built-out
Standard color of cabinet body Computer gray

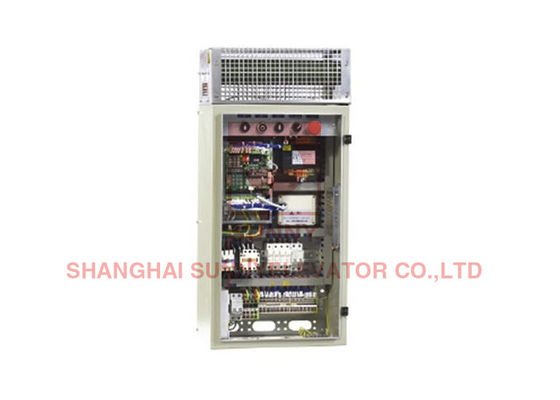

AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous 0


AC220V 2.5m/S Elevator Integrated Controller 5.5kW Asynchronous 1



1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
