Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift

Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift
Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift

Large Image :  Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Elevator Emergency Lighting Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $8~15
Packaging Details: container
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month

Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift

Description
Name: Elevator Emergency Lighting Power Supply Used: Elevator Parts
Model: Elevator Emergency Lighting Power Supply Packing: Standard Export Package
Category: Elevator Parts Warranty: 1 Year
Material: Plastic Certification: ISO9001
Type: Elevator Emergency Lighting Battery Product: Elevator Emergency Lighting Battery
Product Name: Elevator Emergency Lighting Battery
High Light:

2AH Elevator Emergency Lighting Battery

,

DC12V Emergency Lighting Battery

,

Passenger Elevator Emergency Lighting Battery

Elevator Emergency Lighting Power Supply 12V For Passenger Elevator Lift Parts

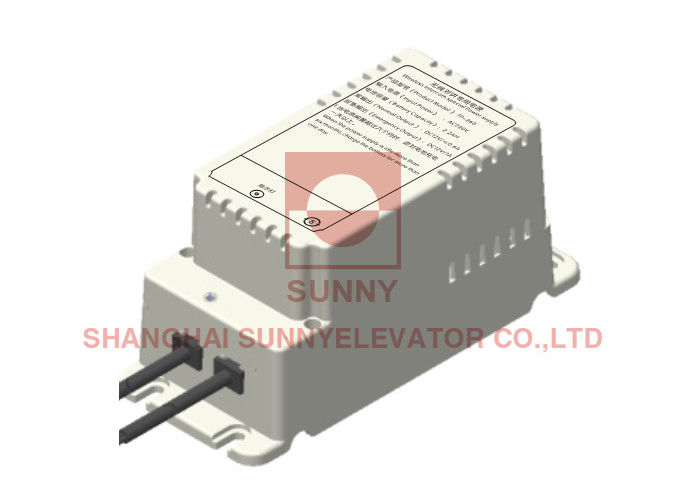

Name Model Power supply type Battery capacity Input voltage Normal output Emergency output voltage Emergency output current Emergency output voltage Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 0
Power SN-TP-260 Li-lon 12V/2AH AC220V 50Hz±10% DC12V±10% DC12V±10% ≤2A ≤2A

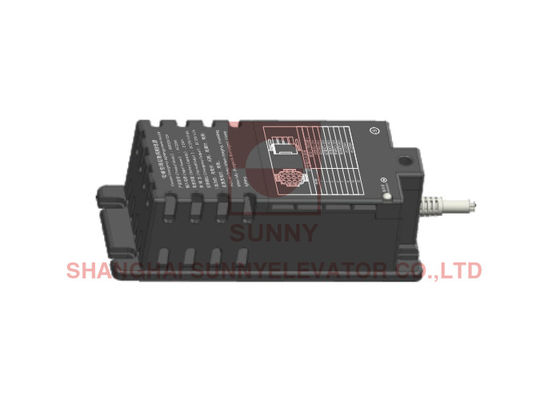

Name Model Power supply type Battery capacity Input voltage Normal output Emergency output voltage Emergency output current Emergency output voltage Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 1

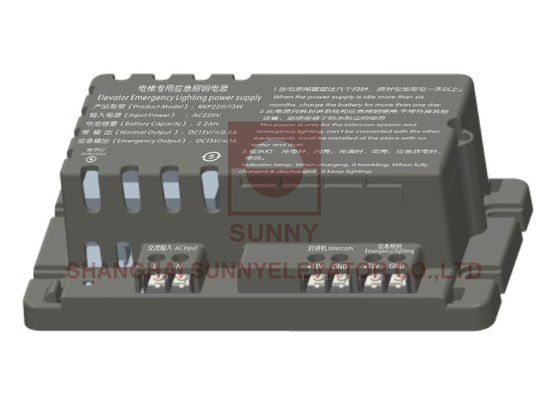

Power SN-RKP220/13W Li-lon 12V/2.2AH AC220V 50Hz±10% DC12V±10% DC12V±10% ≤1A ≤600mA

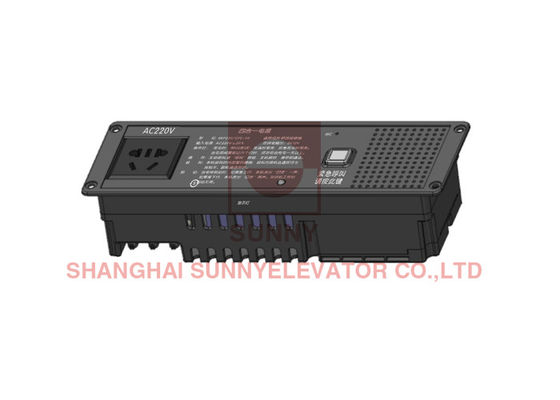

Name Model Power supply type Battery capacity Input voltage Normal output Emergency output voltage Emergency output current Emergency output voltage Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 2
Power SN-RKP220/12V Li-lon 12V/2.2AH AC220V 50Hz±10% DC24V±10% DC24V±10% ≤1A ≤600mA






Name Model Power supply type Battery capacity Input voltage Normal output Emergency output voltage Emergency output current Emergency output voltage Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 3
Power SN-RKP220/12PT-02 Li-lon 12V/2.2AH AC220V 50Hz±10% DC12V±10% DC12V±10% ≤1A ≤600mA

Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 4



Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 5



Elevator Emergency Lighting Battery DC12V For Passenger Elevator Lift 6



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
