Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts

Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts

Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts
Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts
Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SG-OX206
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Governor Speed: ≤0.63 M/S
Rope Wheel Diameter: Ф200 Mm Pulling Force: ≥300N
Used: Elevator Parts Model: Elevator Governor Non-return Machine Roomless
Warranty Time: 12 Months Specification: AC220V AC110V DC24V
High Light:

Dia 200mm One Way Elevator Governor

,

300N One Way Elevator Governor

,

1.0m/s One Way Elevator Governor

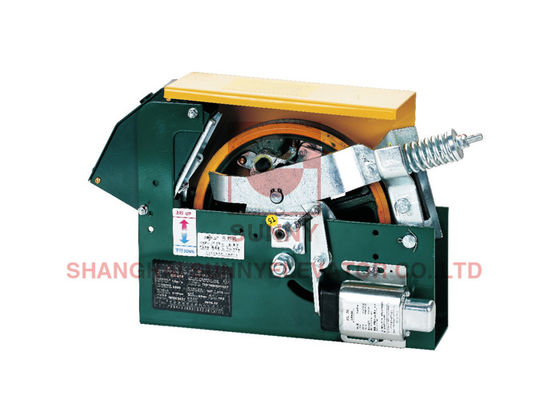

Ф200 Mm Diameter Elevator One-Way Governor For Passenger Elevator Spare Parts



Type SN-SG-OX206
Specification

Covered specifications (Rated speed) :
≤0.63m/s; 1.0m/s;
sheave diameter:200 mm .
Wire rope diameter:6 mm
Pulling force:≥300N
Tension device: OX- 200Q;0X-200
Work location: Car side or counterweight side
Upward control: Drive the main engine brake, pair
safety clamp
Downward control: safety gear

Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts 0

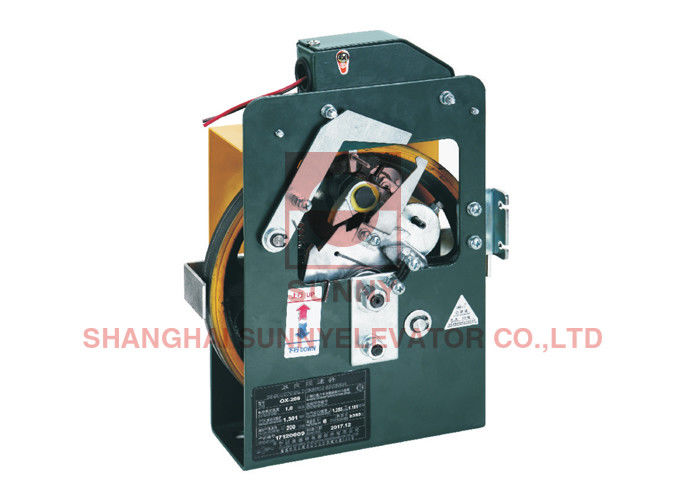

Type SN-SG-OX208
Specification

Covered specifications (Rated speed) :≤0.63m/s; 1.0m/s; 1.5~ 1.6m/s; 1.75 m/s
Sheave diameter:200mm
Wire rope diameter:6 mm
Pulling force:≥500N
T ension device: standard OX- 200,optional OX- 300
Power supply voltage: standard AC220V, optional DC24V;
Work location: Car side or counterweight side
Upward control: permanent - magnet synchronous traction machine brake,
counterweight safety gear
Downward control: safety gear
Remote control: operation and electrical switch reset can be tested electrically; mechanical
mechanism can reset automatically

Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts 1







Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts 2



Dia 200mm One Way Elevator Governor Passenger Elevator Spare Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
