Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning

Customer Reviews
Service is people-oriented and honesty is the most attractive. It's a pleasure to cooperate with you

—— Millay

I'm Online Chat Now

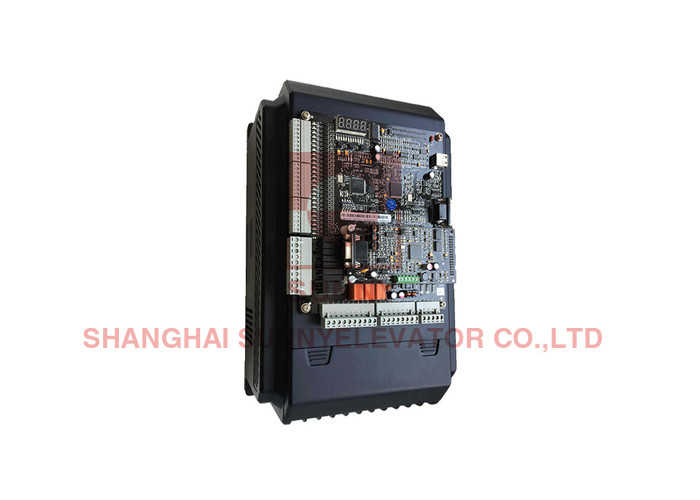

Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning

Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning
Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning

Large Image :  Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Integrated Controller
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: Wooden box
Delivery Time: 7-15working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning

Name: Elevator Integrated Controller Type: Elevator Parts
Applicable: Elevator Equipment,Passager Elevator Packing: Standard Packing
Transportation: DHL TNT FEDEX Applicable Elevator: Elevator Parts
Wire Size: 6~10mm2 Screws: M6
Model: Elevator Integrated Controller Product Name: Elevator Integrated Controller
High Light:

10mm2 Wire Elevator Integrated Controller


VVVF Drive Elevator Integrated Controller


Auto Tuning Elevator Integrated Controller

380V Serial Integrated controller


Model: BL6-UO40XX



1. Advanced Technology
a. Perfectly combine intellectual logic control and high performance VVVF drive control to achieve completely integration.
b. Advanced vector control technology, demodulates motor with high precision, takes full advantage of motor capacity, improves elevator performance and riding comfort.
c. Adopts advanced space vector PWM control method, improves great efficiency than traditional sine/cosine PWM method
and saves more energy.
2. Optimal Performance
a. Generates optimized speed curve based on target floor to make lift direct-stop with high precision and efficiency.
b. CAN BUS technology satisfies serial communication in high speed and reliability. Simplifies system for wiring and extension.
c. Adopts wireless/LAN remote control interface, convenient for long distance control,maintenance and elevator monitoring.

3. Easy to Use

a. Supports two types auto-tuning (self-learn) methods, rotating and static, to compute motor parameters and initial angle.
b. Fuzzy logic control with non-load-compensator for easy lift start-up. Excellent comfort feeling even without lift weighting device.
c. When working with Bluelight synchronous traction machine, controller can pre-define the machine type and automatically save the data. Spares the process of machine parameter inputting and auto-tuning, improves the tunning efficiency and maximize machine performance.
4. High Reliability
a. Advanced double 32bit CPU and FPGA for complete elevator control to ensure high elevator safety and reliability.
b. Redundancy design and full software-hardware protection to guarantee elevator safety and reliability.
c. Professional EMC tested, fully enhance anti-electromagnetic interference ability and suitable for complicated job site.
d. Monitoring the cutting current from controller to main motor every time when elevator stops.




M Series Integrated Controller Dimension(400 V)

400V 3-phase
Controller Model Exterior Dimension




Clamping Torque


Wire size (min)mm2 Wire size (Rec)mm2
W H D W1 H1 H2
BL6-UO4005-N 222 348 200 190 333 8.5 6 M6 4~5 6~10 6
BL6-UO4007-N 7 M6 4~5 6~10 6
BL6-UO4011-N 8 M6 4~5 6~10 6
BL6-UO4015-N 8.5 M6 4~5 6~10 6


Plastic Shell Type Dimension:



Exterior Dimension
BL6-UO4007-NM 222 348 200


Shield Type Demension:



Exterior Dimension
BL6-UO4002-MW 200 290 180
BL6-UO4007-MW 225 348 200
BL6-UO4018-MW 280 418 210



Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning 0


Intelligent Elevator Integrated Controller VVVF Drive Auto Tuning 1


1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
