0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift

0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift

  • 0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift
  • 0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift
0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: ISO9001
Model Number: SN-WVF5-MRL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $600~1500
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Control Cabinet Power: 2.2KW/3.7KW
Speed: 0.5M/S Maximum Stops: 6 Stops
Warranty Time: One Year Voltage: 220V Or 380V Or Others
Product Name: Control Cabinet Type: Elevator Parts
Model: Elevator Control Cabinet Product: Elevator Control Cabinet
High Light:

Machine Roomless Lift Elevator Control Cabinet

,

Villa Elevator Control Cabinet

,

0.5M/S Elevator Control Cabinet

0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift



Villa Elevator Control Cabinet (MRL)



1. Elevator Integrated Control Cabinet
2. Mini size suitable for MRL.
3. Easy to install.
4. Silent contactor with low noise.
5. Build-in ARD & Brake release
6. Use WCR for option.
7. Easy to maintenance.



Features

1. Elevator Integrated Control Cabinet

2. Mini size suitable for MRL.

3. Easy to install.

4. Silent contactor with low noise.

5. Build-in ARD & Brake release

6. Use WCR for option.

7. Easy to maintenance.



Specifications



Power 2.2KW/3.7KW
Elevator Speed 0.5M/S
Maximum Stops 6 stops
Cabinet Dimension 300*170*550mm (200V Rank)
320*190*650mm (400V Rank)
Controller iBL6 elevator Integrated Controller (M Series)
Wiring Connection MIO Modularized Connecting Board (200V Rank)
KIO Modularized Connecting Board (400V Rank)
Voltage 220V-240V (2.2KW,Single Phase)
380V-415V (3.7KW,3-Phase)
Traction Machines Gearless Permanent Magnet Synchronous Traction Machine
Installation On Floor/Wall-Mounted

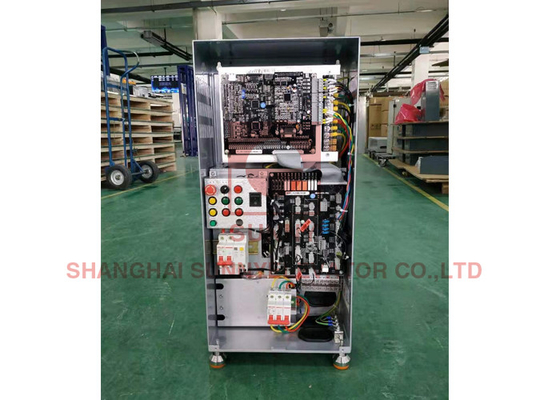

0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift 0



0.5M/S Villa Elevator Control Cabinet For Machine Roomless Lift 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
