Lift Elevator Door Operator Motor With Class F Insulation Level

Lift Elevator Door Operator Motor With Class F Insulation Level
Lift Elevator Door Operator Motor With Class F Insulation Level
Lift Elevator Door Operator Motor With Class F Insulation Level Lift Elevator Door Operator Motor With Class F Insulation Level Lift Elevator Door Operator Motor With Class F Insulation Level Lift Elevator Door Operator Motor With Class F Insulation Level

Large Image :  Lift Elevator Door Operator Motor With Class F Insulation Level

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Motor for Door Operator
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $50~200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

Lift Elevator Door Operator Motor With Class F Insulation Level

Description
Name: Motor For Door Operator Rated Current(A): 0.8
Used: Elevator Parts Warranty Time: One Year
Business Type: Manufacturer Packing: Wooden Box
Applicable: Elevator Equipment Rated Speed(rpm): 190
Product Name: Elevator Door Operator Motor Type: Elevator Door Operator Motor
Product: Elevator Door Operator Motor
Highlight:

Lift elevator door operator motor

,

high torque elevator door operator motor

Lift Elevator Door Operator Motor With Class-F Insulation Level

Motor for Door Operator

1. The external rotor structure of the motor has high torque density.

2. The motor adopts enclosed structure and the protection level reaches IP65.

3. Optimizing the electromagnetic design to make the motor have smaller slot torque,stable operation at low speed and high eficiency. .

4. Using high performance permanent magnet material, design overload capacity (≥250%)

5. The military grade electronic components was used in encoder for higher impact resistance.

6. The lead wire adopts silicon rubber high temperature shielded wire, which has good high temperature resistance and anti-interference ability.

7. Class-F Insulation Level, Make Motor Have Higher Life.

8. Compact structure design can further reduce the overall size of door operator.



PARAMETER

Model PM5121437YC

Dimensions(mm)

130x130x88

Rated Voltage(V)

120

Rated Current(A)

0.8

Rated Wattage(W)

60

Rated Torque(N·m)

3.0

Rated Speed(rpm)

190

Rated Frequency(Hz)

22.17

Poles

14

Working Type

40%(S3 on 6s off 9s)

Insulation Grade

F

Classification

IP65

Encoder Classification

A/B/C/D/E

Pulley

Tooth Outline

8M

Tooth Number

21

Width of pulley(mm)

17


Exterior Drawing

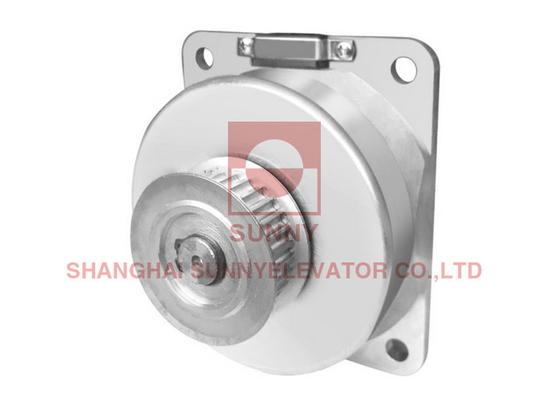

Lift Elevator Door Operator Motor With Class F Insulation Level 0


1. The external rotor structure of the motor has high torque density.

2. The motor adopts enclosed structure and the protection level reaches IP65.

3. Optimizing the electromagnetic design to make the motor have smaller slot torque,stable operation at low speed and high eficiency. .

4. Using high performance permanent magnet material, design overload capacity (≥250%)

5. The military grade electronic components was used in encoder for higher impact resistance.

6. The lead wire adopts silicon rubber high temperature shielded wire, which has good high temperature resistance and anti-interference ability.

7. Class-F Insulation Level, Make Motor Have Higher Life.

8. Compact structure design can further reduce the overall size of door operator.



PARAMETER

Model PM3121422
Dimensions(mm) 100x120x69 Rated Voltage(V) 36 Rated Current(A) 4.0
Rated Wattage(W) 43 Rated Torque(N·m) 2.3 Rated Speed(rpm) 180
Rated Frequency(Hz) 21 Poles 14 Working Type 40%(S3 on 6s off 9s)
Insulation Grade F Classification IP65 Encoder Classification A/B/C/D/E
Pulley Tooth Outline 5M
Tooth Number 28
Width of pulley(mm) 17

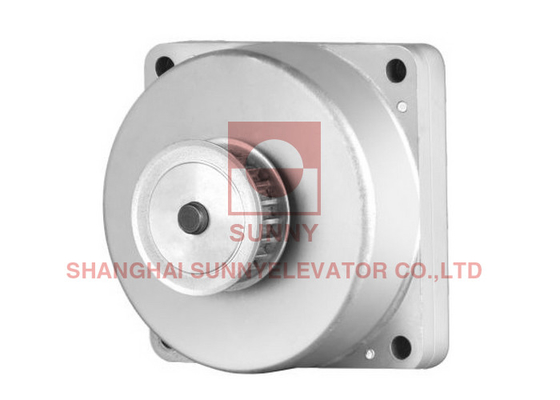

Lift Elevator Door Operator Motor With Class F Insulation Level 1



1. The motor adopts enclosed structure and the protection level reaches IP65.

2. Optimizing the electromagnetic design to make the motor have smallr slot torque,stable operation at low speed and high eficiency.

3. Using high performance permanent magnet material, design overload capacity (≥250%)

4. The military grade electronic components was used in encoder for higher impact resistance.

5. The lead wire adopts silicon rubber high temperature shielded wire, which has good high temperature resistance and antinterference ability.

6. Class-F Insulation L evel, Make Motor Have Higher Life.

7. Compact structure design can further reduce the overall size of door operator.



PARAMETER

Model BM14794-2(Strengthened)

Dimensions(mm)

148x150x126

Rated Voltage(V)

80

Rated Current(A)

1.2

Rated Wattage(W)

140

Rated Torque(N·m)

7.5

Rated Speed(rpm)

150

Rated Frequency(Hz)

12

Poles

8

Working Type

40%(S3 on 6s off 9s)

Insulation Grade

F

Classification

IP65

Encoder Classification

A/B/C/D/E

Pulley

Tooth Outline

8M

Tooth Number

22

Width of pulley(mm)

33

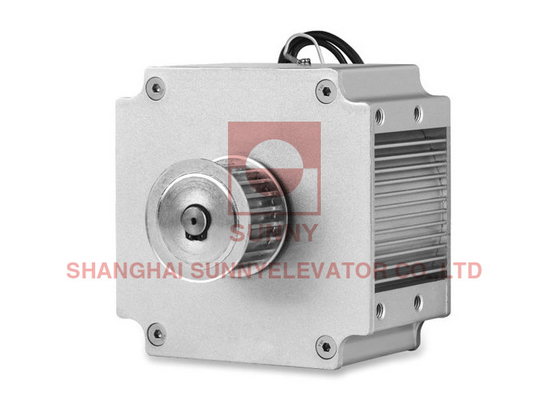

Lift Elevator Door Operator Motor With Class F Insulation Level 2


Lift Elevator Door Operator Motor With Class F Insulation Level 3


Lift Elevator Door Operator Motor With Class F Insulation Level 4Lift Elevator Door Operator Motor With Class F Insulation Level 5


FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
