18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts

18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts
18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts 18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts 18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts

Large Image :  18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CCC, ISO9001
Model Number: E18S Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $5~50
Packaging Details: Standard export packing box
Delivery Time: 10 working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 1000 Pcs/ Month

18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts

Description
Name: Encoders Type: Shaft Type
Model: Car Parts Used: Passenger Elevator
Applicable: Elevator Equipment Usage: Residential Elevators & Sightseeing Elevators & Medical Elevators
Power Supply: 5 VDC ±5% Product: Encoders
Product Name: Encoders
High Light:

18 Mm Incremental Rotary Encoders

,

Shaft Type Incremental Rotary Encoders

,

CCC incremental optical rotary encoder

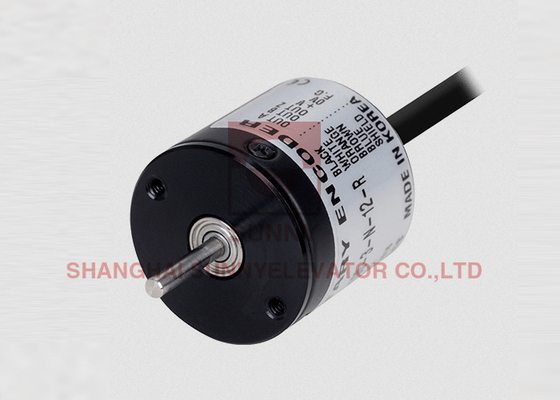

18 Mm Incremental Rotary Encoders (Shaft Type) For Lift Spare Parts



18 mm Incremental Rotary Encoders (Shaft Type)

The E18S series incremental rotary encoders feature ultra-compact Ø18 mm size housings and ultra-lightweight (12 g) design. The small size and light weight allows easy installation in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment. The miniature encoders are ideal for small machinery including ATMs, bill counters, copy machines, and other compact-sized machinery.

Main features

  • Ultra-compact (Ø18mm) housing and ultra-lightweight (12g) design
  • Easy installation in tight or limited spaces
  • Low shaft moment of inertia
  • Various resolutions : 100, 200, 300, 400 pulses per revolution
  • Power supply : 5VDC ±5%

Ultra-Compact (Ø18mm) and Ultra-Lightweight (12g)

The ultra-compact (Ø18mm), ultra-lightweight (12g) encoders are ideal for installation in small machinery and compact applications.



20 mm Incremental Rotary Encoders (Blind Hollow Shaft Type)

The E20HB series blind hollow shaft type incremental rotary encoders feature ultra-compact Ø20 mm size housings and lightweight (35 g) design. The small size and light weight allows easy installation in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment.

Main features

  • Ultra-compact (Ø20mm) housing and lightweight (35g) design
  • Easy installation in tight or limited spaces
  • Low shaft moment of inertia
  • Various resolutions : 100, 200, 320, 360 pulses per revolution
  • Various control output options
  • Power supply : 5VDC ±5%, 12VDC ±5%





20 mm Incremental Rotary Encoders (Shaft Type)

The E20S series shaft type incremental rotary encoders feature ultra-compact Ø20 mm size housings and lightweight (35 g) design. The small size and light weight allows easy installation in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment.

Main features

  • Ultra-compact (Ø20mm) housing and lightweight (35g) design
  • Easy installation in tight or limited spaces
  • Low shaft moment of inertia
  • Various resolutions : 100, 200, 320, 360 pulses per revolution
  • Various control output options
  • Power supply : 5VDC ±5%, 12VDC ±5%





18 Mm Incremental Rotary Encoders Shaft Type For Lift Spare Parts 0



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
