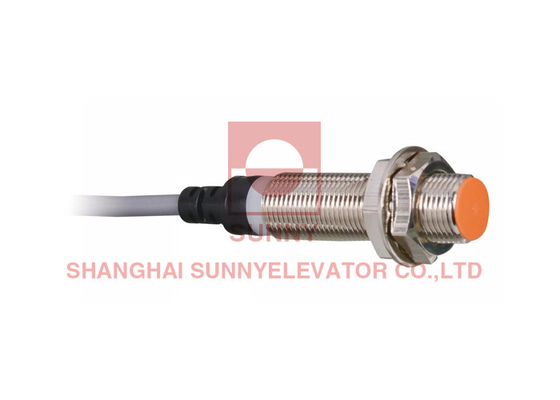

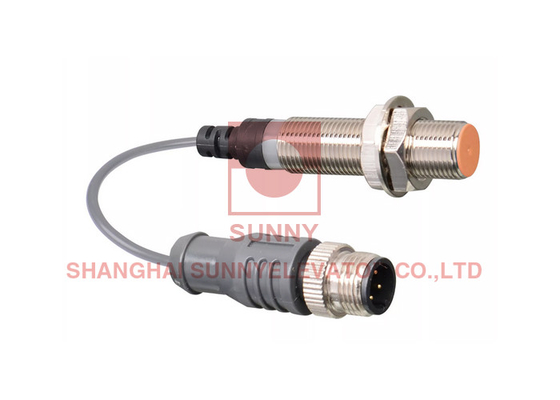

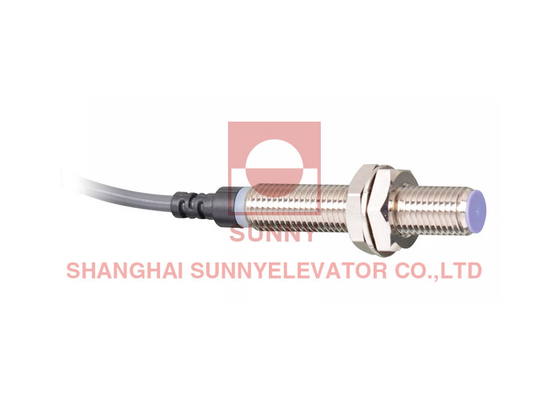

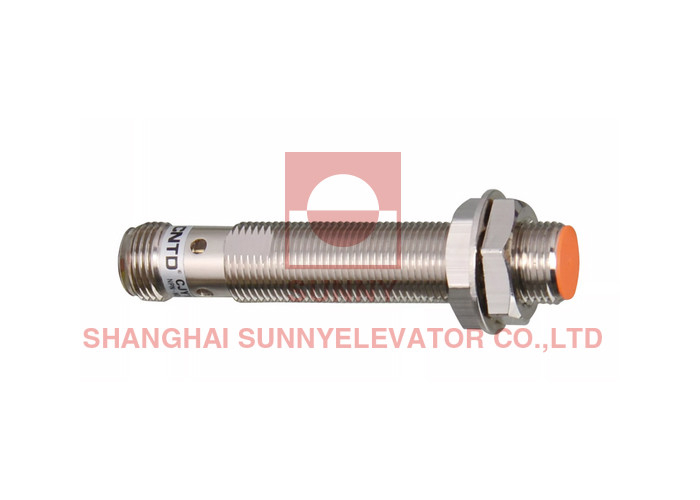

12mm High Quality Automatic IP67 Flush Detection Metal Switch Standard Inductive Proximity Sensor
Inside surge protection, reverse polarity protection, overcurrent protection
Long use-life cycle and high reliability, easy install, enconomic price
Red LED status indication, easy to confifirm work situation
Protection structure IP67(IEC standard)
Replaceable for limit switches
Appearance and Dimension
Proper Usage
Mutual-interference
When several proximity sensors are mounted close to one another a malfunction of the sensor may be caused due to mutual interference.Therefore, be sure to provide a minimum distance between the two sensors as below chart indicates.
Inflfluence by surrounding metals
When sensors are mounted on metallic panel, you must prevent the sensors from being affected by any metallic object except target. Therefore, be sure to provide a minimum distance as below chart indicates.
| Model |
High-end type |
CJY12-02NAR CJY12-02NBR CJY12-02NCR CJY12-02PAR CJY12-02PBR CJY12-02PCR | CJY12-04NAR CJY12-04NBR CJY12-04NCR CJY12-04PAR CJY12-04PBR CJY12-04PCR | CJY18-05NAR CJY18-05NBR CJY18-05NCR CJY18-05PAR CJY18-05PBR CJY18-05PCR | CJY18-08NAR CJY18-08NBR CJY18-08NCR CJY18-08PAR CJY18-08PBR CJY18-08PCR | CJY30-10NAR CJY30-10NBR CJY30-10NCR CJY30-10PAR CJY30-10PBR CJY30-10PCR | CJY30-15NAR CJY30-15NBR CJY30-15NCR CJY30-15PAR CJY30-15PBR CJY30-15PCR |
|
Standard type |
CJY12E-02NAR CJY12E-02NBR CJY12E-02NCR CJY12E-02PAR CJY12E-02PBR CJY12E-02PCR | CJY12E-04NAR CJY12E-04NBR CJY12E-04NCR CJY12E-04PAR CJY12E-04PBR CJY12E-04PCR | CJY18E-05NAR CJY18E-05NBR CJY18E-05NCR CJY18E-05PAR CJY18E-05PBR CJY18E-05PCR | CJY18E-08NAR CJY18E-08NBR CJY18E-08NCR CJY18E-08PAR CJY18E-08PBR CJY18E-08PCR | CJY30E-10NAR CJY30E-10NBR CJY30E-10NCR CJY30E-10PAR CJY30E-10PBR CJY30E-10PCR | CJY30E-15NAR CJY30E-15NBR CJY30E-15NCR CJY30E-15PAR CJY30E-15PBR CJY30E-15PCR | |
| Sensing distance | 2mm | 4mm | 5mm | 8mm | 10mm | 15mm | |
| Hysteresis | Max. 10% of sensing distance | ||||||
| Standard sensing target | 12×12×1mm ( Iron) |
18×18×1mm ( Iron) |
25×25×1mm ( Iron) |
30×30×1mm ( Iron) |
45×45×1mm ( Iron) |
||
| Setting distance | 0~1.4mm | 0~2.8mm | 0~3.5mm | 0~5.6mm | 0~7mm | 0~10.5mm | |
| Power supply (Operating voltage) |
12-24VDC (10-30VDC) |
||||||
| Leakage current | Max.10mA | ||||||
| Response frequency (※1) | 1000Hz | 500Hz | 500Hz | 350Hz | 350Hz | 200Hz | |
| Residual voltage | 1.0V 以下 Max. 1.0V | ||||||
| Affection by Temp. | Max. ±10% for sensing distance at ambient temperature 20℃ | ||||||
| Control output | Max. 200mA | ||||||
| Insulation resistance | Min. 50MΩ(at 500VDC megger) | ||||||
| Dielectric strength | 1500VAC 50/60Hz for 1minute | ||||||
| Vibration | 1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours | ||||||
| Shock | 500m/s2(approx. 50G) X, Y, Z directions for 3 times | ||||||
| Indicator | Operation indicator(red LED) | ||||||
| Ambient temperature | -25~+70℃ ( No icing) | ||||||
| Storage temperature | -30~+80℃ ( No icing) | ||||||
| Ambient humidity | 35~95%RH ( No condensation) | ||||||
| Protection circuit | Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit | ||||||
| Material | Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC) |
||||||
| Cable | φ3.8, 3P,4P 300mm, M12 connector |
φ4.8, 3P,4P 300mm, M12 connector | |||||
| Protection | IP67 | ||||||
