Double Pulling Elevator Lift Progressive Safety Gear Device Gear

Double Pulling Elevator Lift Progressive Safety Gear Device Gear
Double Pulling Elevator Lift Progressive Safety Gear Device Gear Double Pulling Elevator Lift Progressive Safety Gear Device Gear

Large Image :  Double Pulling Elevator Lift Progressive Safety Gear Device Gear

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SG-230A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $90~150
Packaging Details: Wooden box
Delivery Time: 7-15working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

Double Pulling Elevator Lift Progressive Safety Gear Device Gear

Description
Name: Progressive Safety Gear Type: Elevator Parts
Rated Speed: V : 0.5~2.50m/s P+Q: 2100~4100kg
Used: Passenger/Goods Elevator Model: Elevator Parts
Product: Progressive Safety Gear Product Name: Progressive Safety Gear
High Light:

Lift Progressive Safety Gear

,

Progressive Safety Gear Double Pulling

Double Pulling Elevator Progressive Safety Gear Device Gear

Under the control of the speed limiter, when the speed of the elevator exceeds thespeed set by the speed limiter,or in the case of suspension rope fracture andrelaxation, the car will stop and clamp a safety device on the guide rail. lt provideseffective protection for the safe operation of the elevator, generally installed in thecar frame or on the heavy frame;The safety clamp device consists of two major parts:control mechanism (safety clamp linkage mechanism) and braking mechanism(safety clamp).

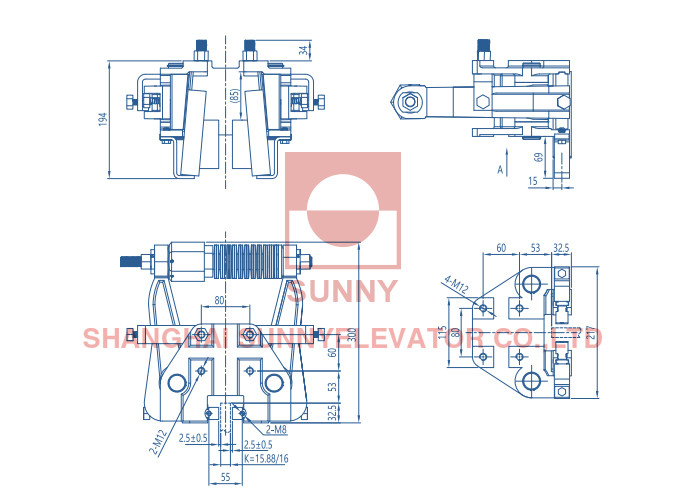

Type SN-SG-230A
Rated speed 2.5~4.0m/s
Total permit system quality 2100~4100kg
Matching guide rail 16mm
Pulling form Double pulling
Double Pulling Elevator Lift Progressive Safety Gear Device Gear 0

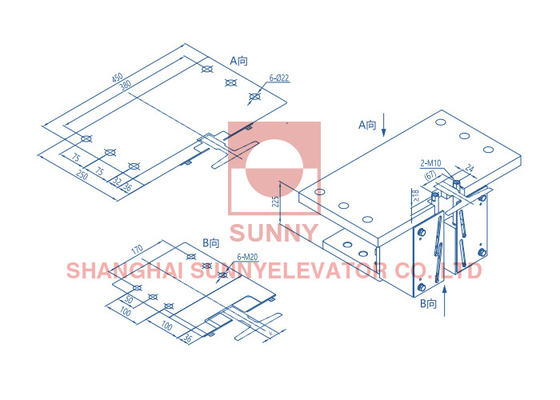

Type SN-SG-688
Rated speed ≤0.63m/s
Total permit system quality ≤40000kg
Matching guide rail 28.6mm
Pulling form Double pulling
Double Pulling Elevator Lift Progressive Safety Gear Device Gear 1



Double Pulling Elevator Lift Progressive Safety Gear Device Gear 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
