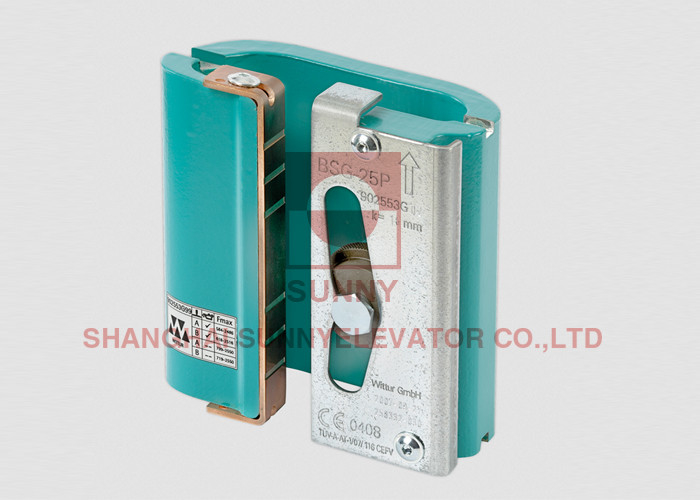

9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear

9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear
9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear 9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear

Large Image :  9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: BSG-25P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $80~200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Pcs/ Month

9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear

Description
Name: Elevator Safety Gear Rated Speed: 2.0 M/S
P+Q: 584~2550 Kg Width Of Guide Rails: 9,16mm
Model: Elevator Safety Gear Used: Elevator Parts
Certifcation: GB/CE Warranty Time: One Year
Product: Elevator Safety Gear
Highlight:

Gear Elevator Safety Parts

,

Bidirectional Progressive Safety Gear

,

Progressive Elevator Safety Gear

Bidirectional Progressive Safety Gear For Lift Safety Spare Parts



USP's

  • Unique design allows up- and downwards gripping
  • Innovative and patented system: progressive braking power is generated by expanding the C-profiled safety gear main body, which is acting as a C-type spring
  • Lightweight design: no additional spring elements required
  • Increased running clearance between brake linings and guide rail to avoid the risk of scratching the brake linings or unintended tripping
  • Comfortable floating suspension to ensure a simple and accurate adjustment to all kinds of guide rails (9/10/15,88/16mm) and conditions (oiled, dry, machined, drawn)
  • Whole load range split up into steps so that no additional adjustments needed within one load step
  • Standard fixing via separate housing
  • Possibility to integrate in vertical or horizontal frame beams
  • Wide range of options available e.g.: safety gear housing, synchronization linkage, governor rope fixing, safety switch
  • Certified for Wittur UCM solutions

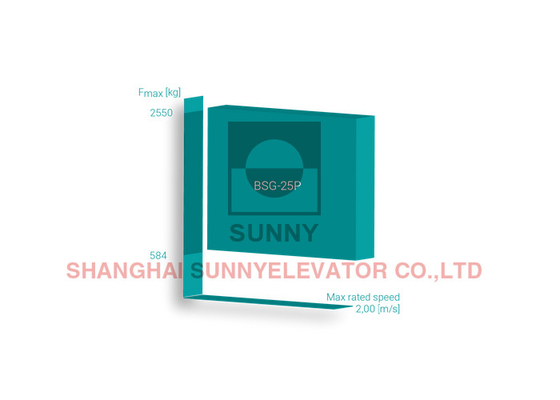

SG Type Load
on Safety [kg]
max. Rated
Speed
[m/s]
Guide Rail [mm]
BSG-25P 584 - 2.550 2,0 9 - 16 drawn / machined oiled / dry




9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear 0



9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear 1



9,16mm Elevator Safety Components Bidirectional Progressive Safety Gear 29,16mm Elevator Safety Components Bidirectional Progressive Safety Gear 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
