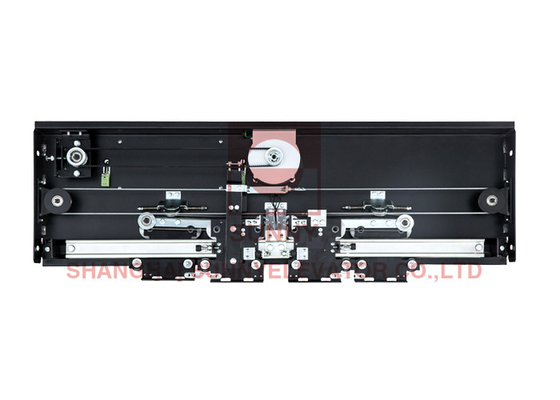

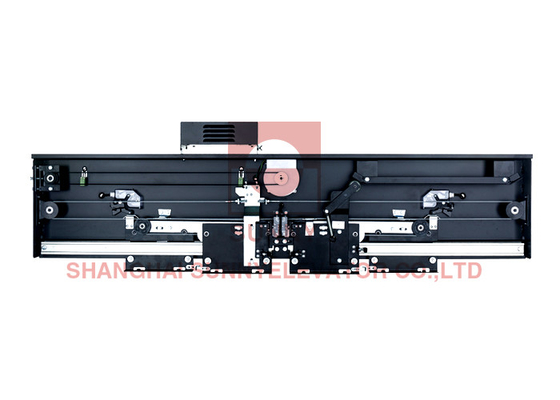

Elevator 4 Panels Center Opening Door Operator Using PM Motor

Elevator 4 Panels Center Opening Door Operator Using PM Motor
Elevator 4 Panels Center Opening Door Operator Using PM Motor
Elevator 4 Panels Center Opening Door Operator Using PM Motor Elevator 4 Panels Center Opening Door Operator Using PM Motor Elevator 4 Panels Center Opening Door Operator Using PM Motor

Large Image :  Elevator 4 Panels Center Opening Door Operator Using PM Motor

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DM-THP131-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

Elevator 4 Panels Center Opening Door Operator Using PM Motor

Description
Name: Door Operator Elevator Rate Speed: ≤2.5 M/s
Model: Door Operator Voltage: 200-250 V, 50 /60 Hz
JJ: 1200~3000mm Used: Elevator Parts
Transportation: By Air/sea Business Type: Manufacturer
Type: Door Operator Product: Door Operator
Highlight:

4 Panels Opening Door Operator

,

PM Motor Opening Door Operators

,

Elevator Components Opening Door Operators

Elevator 4 Panels Center Opening Door Operator Using PM Motor

Type:SN-DM-THP131-35

PRODUCT FEATURES

  1. Using PM motor, large rotary torque, high efficiency and energy saving
  2. Using motor synchronous with direct drag mode to transfer torque, more compact design
  3. Highly smooth operation, achieve the completely closed loop control of the torque, speed and position
  4. Using asyn. door clutch, car frame, top installation
  5. Total door panel weight≤320kg; Voltage:200-250 V, 50 /60 Hz
JJ 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000
A1 1910 2060 2210 2360 2510 2660 2810 2960 3110 3260 3410 3560 3710 3860 4010 4160 4310 4660 4610
B1 155 180 205 230 255 280 305 330 355 380 405 430 455 480 505 530 555 580 605



Elevator 4 Panels Center Opening Door Operator Using PM Motor 0







Type:SN-DM-THP131-37

PRODUCT FEATURES

  1. Using PM motor, large rotary torque, high efficiency, energy saving
  2. Using motor synchronous with direct drag mode to transfer torque, more compact design
  3. Highly smooth operation, achieve the completely closed loop control of the torque, speed and position
  4. Using asyn. door clutch, car frame installation
  5. Total door panel weight≤200kg; Voltage:200-250 V, 50 /60 Hz
JJ 700 750 800 850 900 950 1000 1050 1100
A1 1180 1255 1330 1405 1480 1555 1630 1705 1780
B1 60 72.5 85 97.5 110 122.5 135 147.5 160



Elevator 4 Panels Center Opening Door Operator Using PM Motor 1



Elevator 4 Panels Center Opening Door Operator Using PM Motor 2



Elevator 4 Panels Center Opening Door Operator Using PM Motor 3



Elevator 4 Panels Center Opening Door Operator Using PM Motor 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
