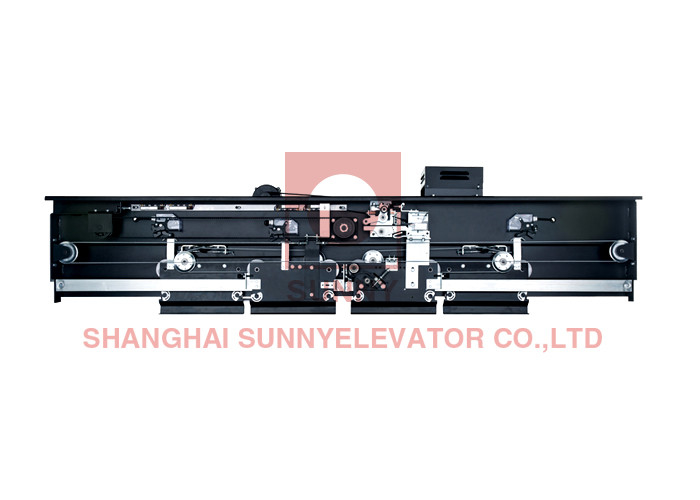

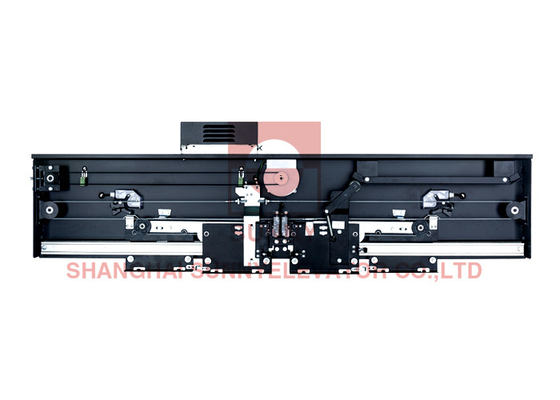

VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission

VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission
VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission
VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission

Large Image :  VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DM-THP131-29
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission

Description
Name: Door Operator Elevator Rate Speed: ≤2.5 M/s
Model: Door Operator Voltage: 200-250 V, 50 /60 Hz
JJ: 1400~3000mm Used: Elevator Parts
Transportation: By Air/sea Business Type: Manufacturer
Type: Door Operator Product: Door Operator
Highlight:

Four Panels Elevator Door Operator

,

VVVF 4 Panels Door Operator

,

SN-DM-THP131-29 Door Operator

VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission

Type:SN-DM-THP131-29

PRODUCT FEATURES

  1. Using the VVVF technology
  2. Using one-level speed-down, synchronous belt transmission, stable and reliable running
  3. Using asyn. door clutch, optional car door lock, car frame, top installation
  4. Total door panel weight≤320kg; Voltage:200-250 V, 50 /60 Hz
JJ 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000
A1 2300 2450 2600 2750 2900 3050 3200 3350 3500 3650 3800 3950 4100 4250 4400 4550 4700



VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission 0



Type:SN-DM-THP131-36

PRODUCT FEATURES

  1. Using the VVVF technology
  2. Using one-level speed-down, synchronous belt transmission, stable and reliable running
  3. Using asyn. door clutch, optional car door lock, car frame, top installation
  4. Total door panel weight≤320kg; Voltage:200-250 V, 50 /60 Hz
JJ 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000
A1 1910 2060 2210 2360 2510 2660 2810 2960 3110 3260 3410 3560 3710 3860 4010 4160 4310 4460 4610



VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission 1



VVVF 4 Panels Center Opening Door Operator Using Synchronous Belt Transmission 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
