Product Details:
|
| Name: | Solid Guide Rail | Type: | Solid Guide Rail |
|---|---|---|---|
| Hollow Guide Rail: | Tk3, Tk5, Tk3a, Tk5a | Machined Guide Rail: | T70-1/B, T75-3/B, T78/B, T82/B, T89/B, T90/B |
| Usage: | For Elevator Cabin Or Counterwight | Size: | 5mm, 9mm, 10mm, 16mm Elevator Guide Rail |
| Guide Rail: | T Guide | Specification: | Cold Drawn Guide Rail, Machined Guide Rail |
| Model: | Solid Guide Rail | Product: | Solid Guide Rail |
| High Light: | Solid Lift Guide Rails 9mm,Passenger Elevator Guide Rail,Elevator T Guide Rails |
||

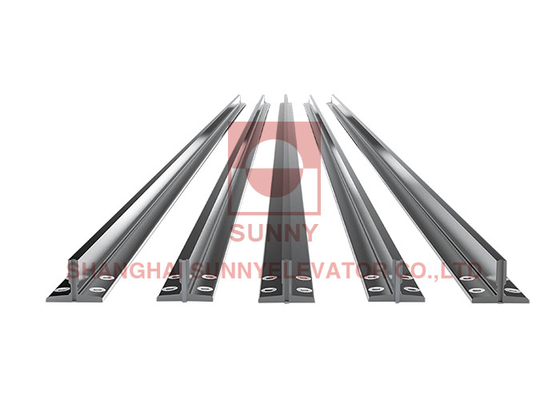

T Type Elevator Solid Guide Rail 9mm, Lift Guide Rails For Passenger Elevator
| Standard | Model | b1 | h1 | h | k | n | f | g | c | b3 | l3 | l2 | l | m1 | m2 | t1 | t2 | d | d1 | L |
| Tolerance | ||||||||||||||||||||
| ±1.5 | ±0.75 | ±0.1 | +0.1 0 |
+3 0 |
±0.75 | ±0.75 | ±0.2 | ±0.2 | ±0.2 | +3 0 |
+0.6 0 |
0 -0.06 |
±0.1 | ±0.1 | ±0.2 | ±0.2 | ±2 | |||
| JG/T5072.1-1996 ISO7465:1997 ISO7465:2001 |
T75-3/B | 75 | 62 | 61 | 10 | 30 | 9 | 7 | 8 | 43 | 30 | 90 | 123 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | |
| T90/B | 90 | 75 | 74 | 16 | 42 | 10 | 8 | 10 | 57.2 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | ||
| T125/B | 125 | 82 | 81 | 16 | 42 | 12 | 9 | 10 | 79.4 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| T140-1/B | 140 | 108 | 107 | 19 | 50.8 | 15.9 | 12.7 | 12.7 | 92.1 | 31.8 | 152.4 | 193 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | ||
| T140-2/B | 140 | 102 | 101 | 28.6 | 50.8 | 17.5 | 14.5 | 17.5 | 92.1 | 31.8 | 152.4 | 193 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | ||
| T140-3/B | 140 | 127 | 126 | 31.75 | 57.2 | 25.4 | 17.5 | 19 | 92.1 | 31.8 | 152.4 | 193 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | ||
| JG/T 5072.1-1996 ISO 7465:1997 |
T82/B | 82.5 | 68.25 | 66.6 | 9 | 25.4 | 8.25 | 6 | 7.5 | 50.8 | 27 | 81 | 111 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | |
| T89/B | 89 | 62 | 61 | 15.88 | 33.4 | 11.1 | 7.9 | 10 | 57.2 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | ||
| T127-1/B | 127 | 88.9 | 88 | 15.88 | 44.5 | 11.1 | 7.9 | 10 | 79.4 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| T127-2/B | 127 | 88.9 | 88 | 15.88 | 50.8 | 15.9 | 12.7 | 10 | 79.4 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| ISO 7465:2001 ISO 7465:2007 GB/T 22562-2008 |
T89/B | 89 | 62 | 61 | 16 | 34 | 11.1 | 7.9 | 10 | 57.2 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | |
| T114/B | 114 | 89 | 88 | 16 | 38 | 11 | 8 | 9.5 | 70 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| T127-1/B | 127 | 89 | 88 | 16 | 45 | 11 | 8 | 10 | 79.4 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| T127-2/B | 127 | 89 | 88 | 16 | 51 | 15.9 | 12.7 | 10 | 79.4 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| ISO 7465:2001 | T78/B | 78 | 56 | 55 | 10 | 26 | 8.5 | 6 | 7 | 43 | 30 | 90 | 123 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | |
| ISO 7465:2007 GB/T 22562-2008 |
T75/B | 75 | 62 | 61 | 10 | 30 | 9 | 7 | 8 | 42 | 25 | 105 | 138 | 3 | 2.97 | 3.5 | 3 | 13 | 26 | |
| T78/B | 78 | 56 | 55 | 10 | 26 | 8.5 | 6 | 7 | 42 | 25 | 105 | 138 | 3 | 2.97 | 3.5 | 3 | 13 | 26 | ||
| T90/B | 90 | 75 | 74 | 16 | 42 | 10 | 8 | 10 | 57.2 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 13 | 26 | ||
| T125/B | 125 | 82 | 81 | 16 | 42 | 12 | 8 | 10 | 79.4 | 38.1 | 114.3 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
| T140-1/B | 140 | 108 | 107 | 19 | 51 | 15.9 | 12.7 | 12.7 | 92.1 | 31.8 | 152.4 | 193 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | ||
| T140-2/B | 140 | 102 | 101 | 28.6 | 51 | 17.5 | 14.5 | 17.5 | 92.1 | 31.8 | 152.4 | 193 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | ||
| T140-3/B | 140 | 127 | 126 | 31.75 | 57 | 25.4 | 17.5 | 19 | 92.1 | 31.8 | 152.4 | 193 | 6.4 | 6.37 | 7.14 | 6.35 | 21 | 40 | ||
| Factory standard |
T82-3/B | 82 | 62 | 61 | 15.88 | 31 | 10 | 7.5 | 8 | 50 | 38.1 | 114.3 | 156 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | |
| T89-1/B | 89 | 62 | 61 | 15.88 | 32 | 9 | 7 | 8 | 57.2 | 38.1 | 114.3 | 156 | 4 | 3.95 | 4.5 | 4 | 13 | 26 | ||
| T114/B | 114 | 89 | 88 | 16 | 38 | 12 | 8 | 10 | 76 | 25 | 125 | 156 | 6.4 | 6.37 | 7.14 | 6.35 | 17 | 33 | ||
