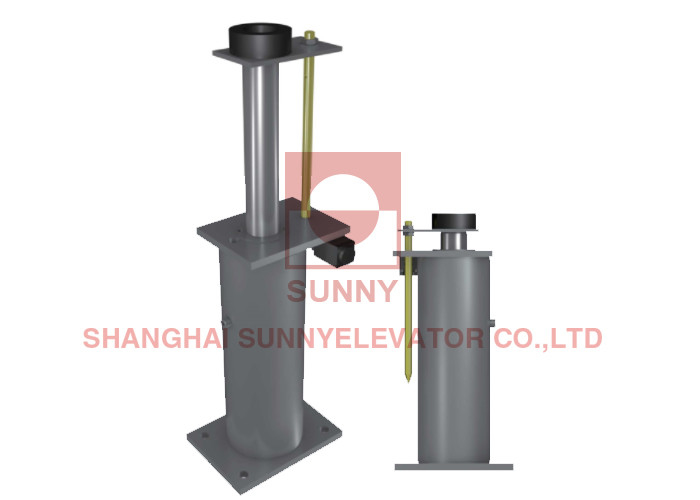

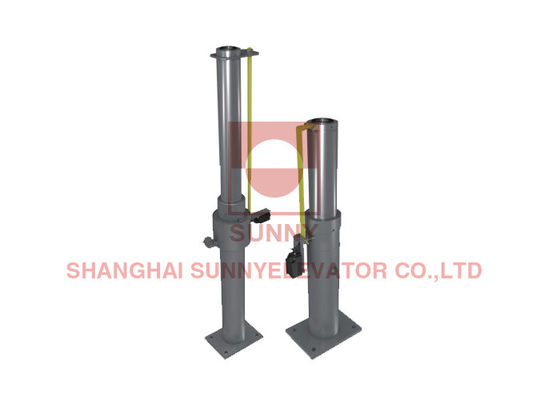

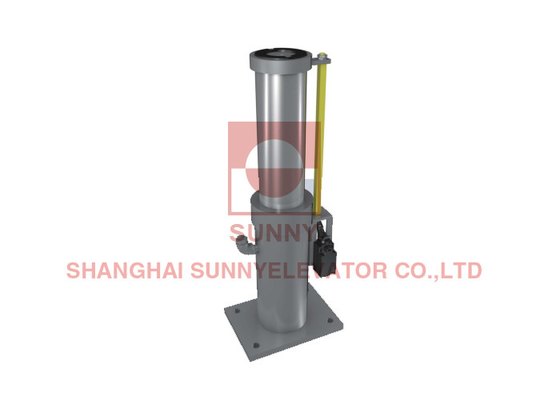

Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift

Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift
Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift

Large Image :  Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Elevator Oil Spring Buffer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $30~100
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift

Description
Name: Elevator Oil Spring Buffer Model: Elevator Oil Spring Buffer
Used: Elevator Parts Size: Na
Product: Elevator Oil Spring Buffer P+Q: 3000kg
Rated Speed: ≤2.5m/s Warranty Time: One Year
Category: Elevator Parts Applicable: Passenger Lift
High Light:

Safety Component Elevator Spring Buffer

,

Hydraulic Elevator Oil Buffer

,

Passenger Lift Oil Buffer 3000kg

Supply All Brand Elevator Parts Safety Component Elevator Oil Spring Buffer



Type rated speed max impact speed min/max load stroke/height
SN-OBA16 1.6m/s 1.84m/s 450/3500kg 180/525mm
SN-OBA18 1.75m/s 2.01m/s 210/600mm
SN-OBA20 2.0m/s 2.3m/s 286/775mm





Type rated speed max impact speed min/max load stroke/height
SN-OBC16A 1.6m/s 1.84m/s 450/3500kg 175/595mm
SN-OBC18A 1.75m/s 2.01m/s 230/735mm
SN-OBC20A 2.0m/s 2.3m/s 290/885mm
SN-OBC25A 2.5m/s 2.88m/s 450/4500kg 435/1270mm
SN-OBC10B 1.0m/s 1.15m/s 600/3500kg 68/300mm
SN-OBC15B 1.5m/s 1.72m/s 158/500mm
SN-OBC16B 1.6m/s 1.84m/s 175/536mm
SN-OBC18B 1.75m/s 2.01m/s 210/626mm
SN-OBC20B 2.0m/s 2.3m/s 600/4300kg 275/796mm
SN-OBC25B 2.5m/s 2.88m/s 450/4550kg 435/1120mm
SN-OBC20BA 2.5m/s 2.88m/s 600/4550kg 435/1196mm
SN-OBC18G 1.75m/s 2.01m/s 400/3500kg 207/530mm



Type rated speed max impact speed min/max load stroke/height
SN-OBF17 1.75m/s 2.01m/s 250/2500kg 207/530mm



Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift 0

Hydraulic Elevator Safety Components Oil Spring Buffer For Passenger Lift 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
