4m/s Elevator Control Cabinet With AS380 Integrated Controller System

4m/s Elevator Control Cabinet With AS380 Integrated Controller System
4m/s Elevator Control Cabinet With AS380 Integrated Controller System 4m/s Elevator Control Cabinet With AS380 Integrated Controller System

Large Image :  4m/s Elevator Control Cabinet With AS380 Integrated Controller System

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: ISO9001
Model Number: SN-X5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $600~1500
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

4m/s Elevator Control Cabinet With AS380 Integrated Controller System

Description
Name: Elevator Control Cabinet Power: 2.2KW-30KW
Speed: ≤4m/s Floor: 48
Warranty Time: One Year Voltage: 220V Or 380V Or Others
Product Name: Control Cabinet Type: Elevator Parts
Product: Elevator Control Cabinet Model: Elevator Control Cabinet
High Light:

Integrated Elevator Control Cabinet

,

4m/s Lift Control Cabinet

,

30KW Elevator Control Cabinet

Elevator Control Cabinet With AS380 Integrated Controller System



Elevator control cabinet

Model AS380
Motor type Asynchronous motor
Synchronous motor
Voltage class 380V
Power class 2.2/3.7/5.5/7.5/11/15/18.5/22/30kw



Elevator control cabinet

Power Range: 2.2KW-30KW
Speed: ≤4m/s
Maximum floor expansion: 48 floors
Connection mode: Plugin-in
Cabin size(W*D*H): 1250*450*240mm
Control system AS380 integrated controller
Man-machins signal sampling mode: All seial
Standard adapter power: Three-phase 380 VAC
Brake voltage: DC110V/AC220V/DC24V
Color : Gray
Standard package: Carton
Mounting mode : Floor type,wall-mounting type

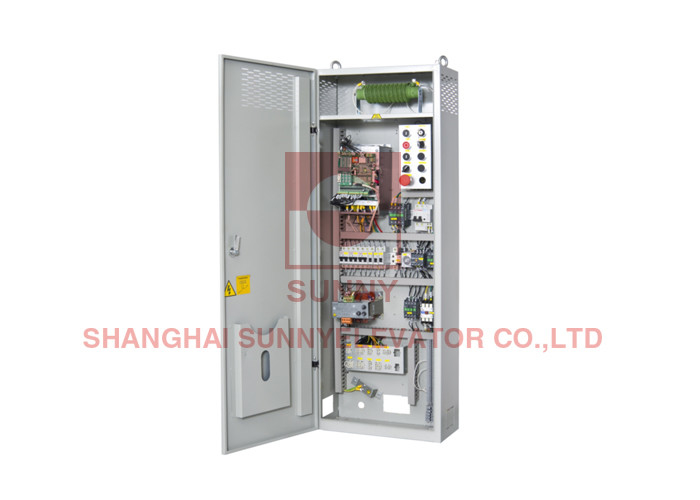

4m/s Elevator Control Cabinet With AS380 Integrated Controller System 0

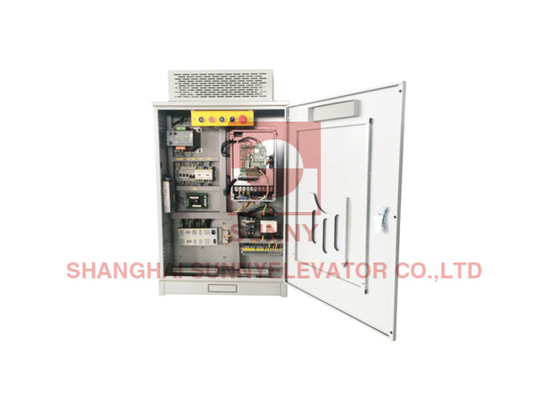

4m/s Elevator Control Cabinet With AS380 Integrated Controller System 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
