Product Details:
|
Name: | Weco Light Curtain | Detecting Range: | 0~4000mm |
---|---|---|---|
Brand: | WECO | Voltage: | 220V |
Category: | Elevator Parts | Business Type: | Manufacturer |
Model: | Weco Light Curtain | Type: | Weco Light Curtain |
Highlight: | 220V Weco Elevator Light Curtain,Elevator Door Safety Edge Light Curtain,4000mm Lift Light Curtain |

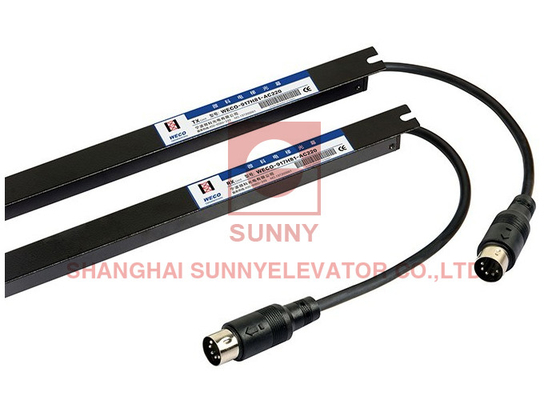

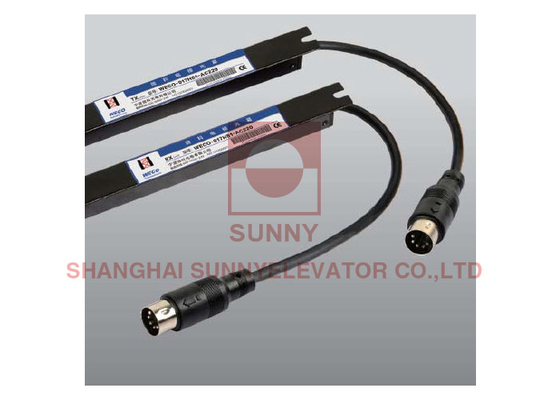

917 Standard Type 220V Weco Light Curtain For Elevator Door Safety Edge
Technical Parameters |
917H | ||
Technical Features |
|||
Number of Infra Red |
17 Diode sets |
32 Diode sets |
|
Response |
Response |
45ms | 61ms |
transistor |
21ms | 37ms | |
Scanning Beams |
94~33 Beams | 154~94 Beams | |
infrared diodes range |
118mm | 59mm | |
The mimimum door opening |
≤20mm | ||
The Maximum door opening |
≥1800mm | ||
Tolerance |
Up/down: ±15mm/ 7°Back/forth:±3mm/ 5° |
||
Detecting Range |
0~4000mm |
||
Operating Temperature |
-20°C~+65°C |
||
Reliability |
|||
Light Immunity |
100000Lux. |
||
Protection Level |
IP54 | ||
Vibration |
Vibration 20 to 500Hz4hrs per X-Y-Z axis, sinusoidal vibration 30Hz rms 30mins per X-Y-Z axis |
||
nvlornment test(high&low temperature) |
GB/T2423.1—GB/T2423.4 |
FAQ
Q1: Is there free samples?
A: Yes,we could offer free sample if the unit price is less than 10usd, please contact me.
Q2: Customized logo on the elevator parts?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter, there is min order quantity.
Q3: Get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
Q4: Inspection procedures for elevator parts?
A: 100% self-inspection before packing.
Q5: Mix the 20ft container?
A: Yes,let us know your requirments please
Q6: Visit to your company before the order?
A: Sure,welcome to visit us. Our location is near by Shanghai Hongqiao airport.
Q7: By paypal and western union or cash or CNY?
A: Yes,please contact us for detail.
Q8: Delivery time of the parts?
A: Depend on the products your asked, please contact us for detail.
Q9: How to place order?
A: 1.let us know your requirment; 2 confirm the detail we will make proforma invoice for you; 3.send us payment and bankslip,or you could pay on alibaba we will release work order accordingly.4.We will send goods to you with the shipping metherd we confirmed.
