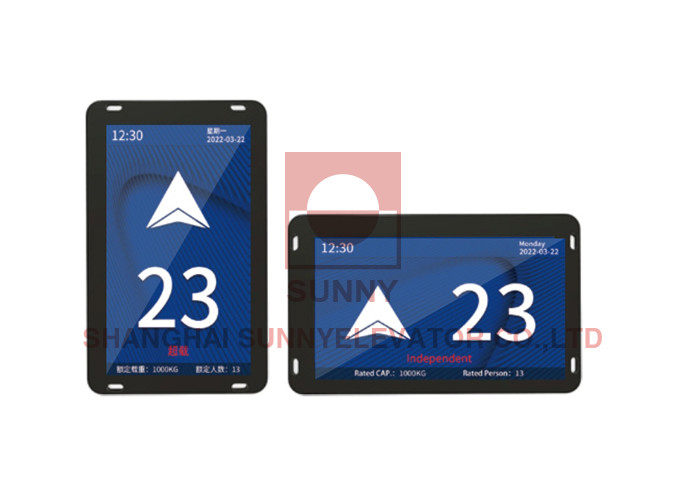

7" 200ma Current Elevator TFT Display Support Voice Station Announcement

7" 200ma Current Elevator TFT Display Support Voice Station Announcement
7" 200ma Current Elevator TFT Display Support Voice Station Announcement
7" 200ma Current Elevator TFT Display Support Voice Station Announcement 7" 200ma Current Elevator TFT Display Support Voice Station Announcement 7" 200ma Current Elevator TFT Display Support Voice Station Announcement

Large Image :  7" 200ma Current Elevator TFT Display Support Voice Station Announcement

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Elevator TFT Display
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $80~100
Packaging Details: Standard Export Package
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/month

7" 200ma Current Elevator TFT Display Support Voice Station Announcement

Description
Name: Elevator TFT Display Used: Elevator Parts
Original: Yes Application: Elevator
Power: DC24V Product Name: Elevator TFT Display
Warranty Time: One Year Business Type: Manufacturer
Brightness: 300 Size: 7'
Voltage: 24V Type: Elevator TFT Display
High Light:

200ma Current Elevator TFT Display

,

7" Elevator TFT Display

,

Voice Station Announcement Elevator LCD Display

7' 200ma Current Elevator TFT Display Support Voice Station Announcement



Product introduction features
Product integration mold opening

Ultra-thin shell

Support background music playing

Support voice station announcement

Product working range temperature -20 to 70 degrees

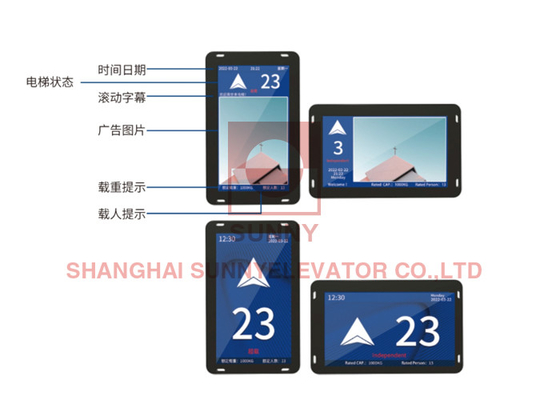

Function
Support elevator upstream and downstream, floor, elevator status

Support voice station announcement

Support perpetual calendar, week, date, time, etc

Supports fast horizontal and vertical display switching

Supports pure layer display
You can adjust device parameters by pressing buttons

Support background music playing

Support English and Chinese interface

Support for scrolling subtitles

Support advertising picture play

Supports silent mode at night



Parameter
Size 7' Voltage/current 24V/200mA
Display area 154.7*86.5 Product dimensions 188*116*20mm
Brightness 300 Resolution 800*480
Display perspective 70/70/60/60 Working environment -20℃~70℃
Contrast ratio 800:1 Storage environment -30℃~80℃



7" 200ma Current Elevator TFT Display Support Voice Station Announcement 0



7" 200ma Current Elevator TFT Display Support Voice Station Announcement 17" 200ma Current Elevator TFT Display Support Voice Station Announcement 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
