2 Leafs Center Opening Home Elevator Door Operator Car Top Installation

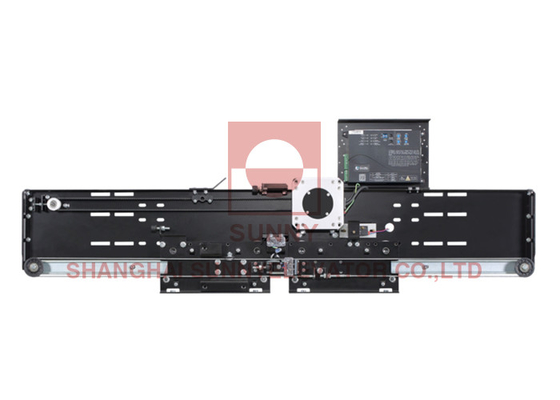

2-Leafs Center Opening Permanent Magnet Synchronous Door Operator For Home Lifts (Car Top Installation)

Feature:

2-Leafs Center Opening Permanent Magnet Synchronous Door Operator

For Home Lifts(On Car Front-Wall Installation)

Feature:



Applicable voltage:

Door lock voltages ≤ AC230V,≤ DC110V.



Self-closing type:

Using common spring self-closing type. Common spring is located inside the upper side of landing door device.



Compact structure:

Using door jamb unlocking type. 40 sill is applicable, especially for home lift.



Multiple certificates:

Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER.

Level of protection is IP20.



Floor height range:

Standard floor height ≥ HH+600, lowest floor height HH+400.

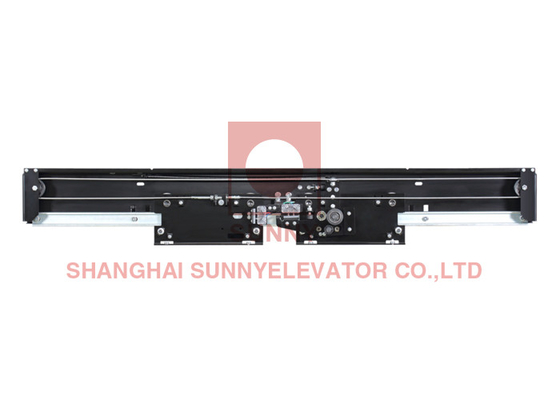

2-Leafs Center Opening Landing Door Device For Home Lifts(Common Spring Type)

JJ	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200
A1L	1210	1310	1410	1510	1610	1710	1810	1910	2010	2110	2210	2310	2410
A2L	175	200	225	250	275	300	325	350	375	400	425	450	475








FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
