1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift

1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift
1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift 1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift

Large Image :  1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-LHB250D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $30~100
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift

Description
Name: Oil Buffer Model: Oil Buffer
Used: Elevator Parts Certifications: GB
Product: Oil Buffer P+Q: 600-3000 Kg
Rated Speed: ≤2.5m/s Warranty Time: One Year
Category: Elevator Parts Applicable: Passenger Lift
Highlight:

Home Lift Oil Buffer

,

1125 Mm Oil Buffer

,

Elevator Safety System Oil Buffer



1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift



Introducing our hydraulic elevator buffer, designed as the ultimate safety measure in the event of elevator malfunction.

When an elevator goes out of control, the speed status is first detected by the speed limiter. If the elevator exceeds the safe speed, the safety clamp will be activated, locking the elevator car onto the guide rails. The elevator buffer is the final safety measure put in place to prevent any potential failures of the aforementioned safety devices.

In the event of a free fall, the elevator will first impact the buffer at the bottom of the elevator shaft. The springs and hydraulic equipment on the buffer will absorb a significant amount of energy from the impact, reducing the risk of injury to passengers inside the car and ensuring their safety.



SN-LHB250D Rated Speed ≤2.5 m/s
Impact Speed ≤2.88 m/s
Free Height 1125 mm
Stroke 425 mm
Permitted P+Q 600-3000 kg
Certifications GB
Oil injection quantity 1.20 L

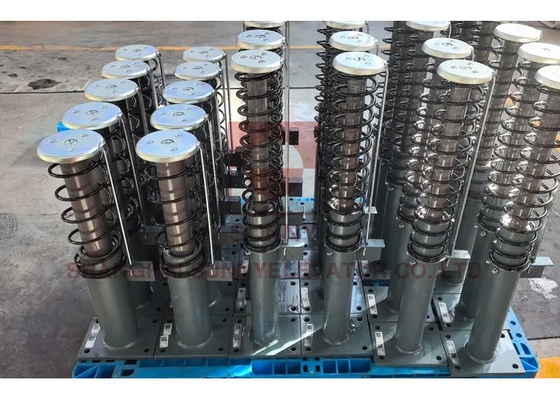

1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift 0



1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift 1

1125 Mm Free Height Elevator Safety System Oil Buffer For Home Lift 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
