Product Details:
|
Name: | Push Button Switch | Shape: | Square |
---|---|---|---|
Size: | 35x35 Mm | Current: | 50 MA |
Conformity: | EN81-70 | Color: | Red,Green,White,Yellow,Orange,Blue |
Model: | Push Button Switch | Product: | Push Button Switch |
Highlight: | braille lift buttons,elevator panel buttons |

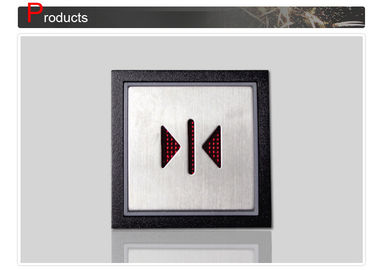

Lift Push Button , Elevator Push Button with Long Service Life , Size 40x40 mm , SN-PB510
1. Plastic material with paint coating. Stainless steel words slice filled with transparent resin, two-color LED (the color of the characters is different from the side frame. )
2. Installed with cassette structure, suitable for 1.5- 3mm panel.
3. Signal type: 'digits', 'up', 'down', 'close', 'open', 'alarm', 'intercom' etc.,
4. Color optional.
5. Hole size: 37mm*37mm
6.Voltage: 24DCV(standard), 12DCV, 48DCV ± 10%
7. Inner switch brand imported OMRON-5 series
Specification Item |
Detail |
Conformity |
EN81-70 |
Current |
50mA |
HUMIDITY |
45%~90% |
Inner switch brand |
Imported OMRON-5 series |
IP |
IP64 |
Life time |
3, 000, 000 tims |
Lighting color |
Red (standard), blue, white, orange, yellow(optional) |
Pushing pressure |
2-3.5N |
Temperature |
-10~50° C |
Voltage |
24DCV(standard), 12DCV, 48DCV ± 10% |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
