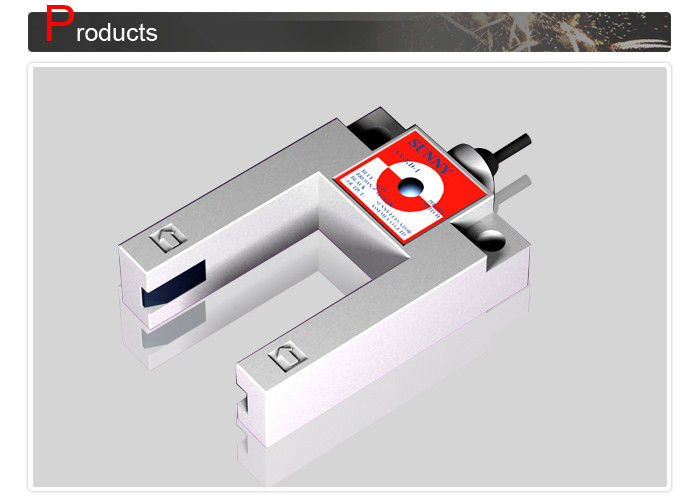

PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch

PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch
PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch

Large Image :  PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-GDC-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $5~20
Packaging Details: Wooden box
Delivery Time: 15 working days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 1000pcs/month

PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch

Description
Product Name: Infrared Light Sensor Switch Voltage: DC 12--24V Polarity Protected
Output Mode: PNP(Vcc-1.0V) Or NPN(<1.0V) Light-proof: 30,000 Lux
Action Response Time: ≤1 Ms Working Temperature: -25° C--60° C
Model: Infrared Light Sensor Switch Type: Infrared Light Sensor Switch
Highlight:

lift components

,

elevator accessories

 Infrared Light Sensor Switch for Elevator Electrical Parts , Output Mode PNP/ NPN , SN-GDC-1

PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch





PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch 0

  • Use high-speed operation amplifier
  • Fast discharge circuit
  • Reaction time reaches mico-second class
  • High light-proof 30,000 lux
  • High anti-EMI 2500V



PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch 1



Voltage

DC 12--24V Polarity protected

No-load Current

<25mA (24V)

Output Mode

PNP(Vcc-1.0V) or NPN(<1.0V)

Anti-group-pulse Interference

±2KV

Light-proof

30,000 Lux

Action Response Time

≤1 ms

Indicator Light

Light up when blocked

Protection Level

lp65

Working Temperature

-25°C--60°C

Storage Temperature

-25°C--80°C

Relative Humidity

80%--90% RH

Control Output

≤80mA (DC24V)



PNP / NPN Elevator Electrical Parts / Infrared Light Sensor Switch 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
