SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift

SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift
SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift

Large Image :  SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SG-AQ10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $90~150
Packaging Details: Wooden box
Delivery Time: 7-15working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift

Description
Name: Elevator Safety Gear Type: Elevator Parts
Rated Speed: V : 0.25~2.50m/s P+Q: 1000~2800kg
Used: Passenger/Goods Elevator Model: Elevator Parts
Product: Elevator Safety Gear Product Name: Elevator Safety Gear
Highlight:

Passenger Lift Elevator Safety Gear

,

SN-SG-AQ10 Elevator Safety Gear

,

Belleville Spring Elevator Safety Gear



SN-SG-AQ10 Elevator Safety Components With Belleville Spring For Passenger Lift



Recommend for passenger lift

Product advantage: this product receives the signal from the speed limiter during the overspeed operation of the elevator out ofc ontrol, the belleville spring is used as the elastic element to provide acting force of the safety gear wedge to clamp the guide rail, and to stop the uncontrolled elevator car, This product is provided with the compact structure and small volume because of the use of the belleville spring as an elastic element, and the safety gear, which can be easily installed and operated,acts stably and reliably , and can be used on the car side or the counterweight side.



Rated Speed (P+Q)max Width of guide rails Type
V : 0.25~2.50m/s 1000~2800kg 10, 15.88, 16mm SN-SG-AQ10
SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift 0

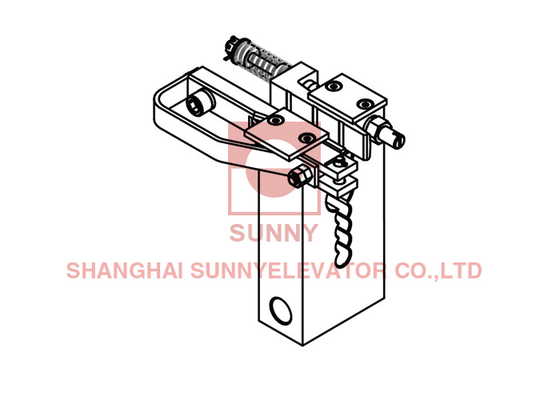

Product advantage:this product receives the signal from the speed limiter during the overspeed operation of the elevator out of control.
the 7-type spring is used as the elastic element,to provide the acting force ofthe safety gear wedge to clamp the guide rall,and stop the
uncontrolled elevator car.This safety gear can be easily installed and operated,with stable and reliable action.t can be used for both car
side and counterweight side.This product passed the national standard certification, CE certification and Rus s ia n EAC certification.



Rated Speed (P+Q)max Width of guide rails Type
V :≤2.50m/s

2900~5200kg

1600~3200

600~2000

9≤k≤16mm SN-SG-AQ11
SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift 1



SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift 2



SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift 3



SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift 4SN-SG-AQ10 Elevator Safety Gear Lift Components With Belleville Spring For Passenger Lift 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
