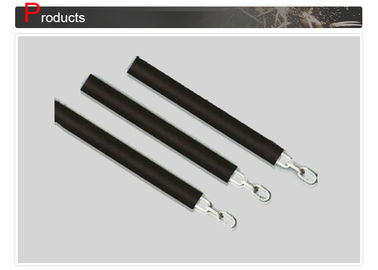

Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts

Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts
Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts

Large Image :  Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-WFQS-075
Payment & Shipping Terms:
Minimum Order Quantity: 500 Meter
Price: $1.5~3
Packaging Details: 1.5 Ton/Wooden Box, 1000-1500 Meters/Roller,
Delivery Time: 5-10 working days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 500,000 Meter/Month

Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts

Description
Product Name: Elevator Compensating Chain Unit Weight (kg/meter): 1.12±0.2
Chain Diameter (mm): 5.5±0.2 Min.bending Diameter (mm): 580
Broden Load (≥KN): 13.32 Max.Length (mm): 160
Model: Elevator Compensation Chain Type: Elevator Compensation Chain
Highlight:

elevator balance chain

,

lift chains

Industrial Chain , Elevator Compensating Chain with Broken Load ≥13.32 , SN-WFQS-075

Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts 0

  • Perfectly combine welded chain with PVC
  • Good and stable performance
  • Flexibility, small bending diameters, insulation, durability, aging-resistance, can work under a wide range of temperature
  • Low noise, recommended for elevator speed over 1.75m/s and less than 3m/s



Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts 1

Part NO.

Weight
(kg/m)

OD
(mm)

Min bending Diameter
(mm)

Diameter of link ring
(mm)

Breaking load
(
KN)

Max. Hang length
(m)

SN-WFQS-075

1.12±0.2

24±2

610

6±0.5

11.25

160

SN-WFQS-100

1.49±0.2

27±2

610

6.5±0.5

13.32

160

SN-WFQS-125

1.88±0.2

30±2

610

7±0.5

18.00

147

SN-WFQS-150

2.23±0.2

32±2

610

7.8±0.5

23.66

130

SN-WFQS-200

2.98±0.2

38±2

650

9±0.5

29.97

160

SN-WFQS-250

3.72±0.2

42±2

650

10±0.5

40.82

142

SN-WFQS-300

4.46±0.2

44±2

650

11±0.5

46.58

153

SN-WFQS-350

5.20±0.1

48±2

650

12±0.5

53.4

150

SN-WFQS-400

5.68±0.1

52±2

650

13±0.5

62.6

150



Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts 2



Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts 3



Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts 4



Industrial Full - plastic Elevator Compensation Chain / Elevator Spare Parts 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
