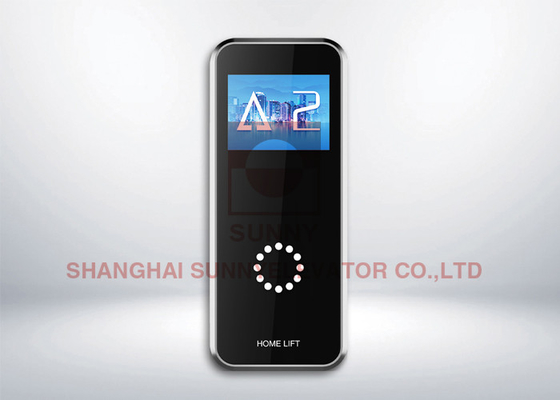

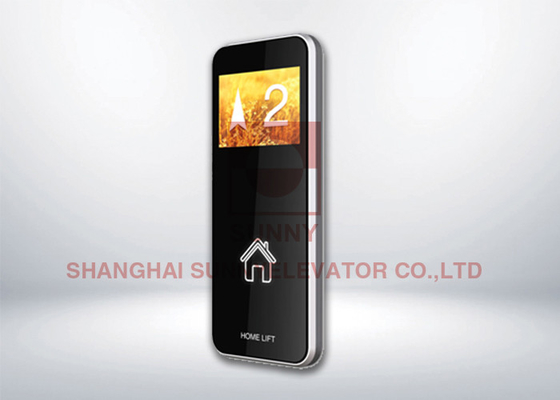

Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display

Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display
Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display
Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display

Large Image :  Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Elevator Display
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $10~100
Packaging Details: Standard Export Package
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/month

Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display

Description
Name: 3.5-Inch Graphic TFT Used: Elevator Parts
Size: 3.5-inch Application: Elevator
Voltage: 24V Product Name: 3.5-Inch Graphic TFT
Warranty Time: One Year Business Type: Manufacturer
Model: 3.5-Inch Graphic TFT Type: 3.5-Inch Graphic TFT
Highlight:

Elevator 3.5 Inch Graphic TFT

,

Elevator Graphic TFT

,

Elevator Cop Lop Lift Display

Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display



SN-BVP03501 is a 3.5-inch graphic TFT, which can display running direction, floor, special functions and other various information of elevator to passengers, adding a sense of luxury to the building.

Feature and advantage:

It can be used for LOP display.
It can display floor, arrow, function icons.
The program, background picture, arrow display, floor display and function display can be updated through USB.
It has single capacitive touch button as standard.



Dimension

Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display 0

Parameters

Size 3.5 inch Voltage/current 24V
RTC none Speaker none
Display area(mm) 73*55.4 Color depth RGB666(64k)
Brightness 250 Resolution 320*240
Display angle 70-70-60-70 Working environment -10~70℃,10~90%RH
Contrast 500:1 Storage environment -30~80℃,10~90%RH



Function introduction (upport to show or hide)

Interface display function Real-time display of elevator floor and direction status.
Arrows can be set as static arrows or dynamic arrows.
Alarm display function Receive control cabinet signals in real time, and display alarm information such as "maintenance",
"failure", "full load".
USB update
function
Interface themes and pictures can be updated via USB.
Floor settings Set the physical floor through the interface dialing code.





Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display 1Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display 2



Elevator 3.5-Inch Graphic TFT For Elevator Parts Cop Lop Lift Display 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
