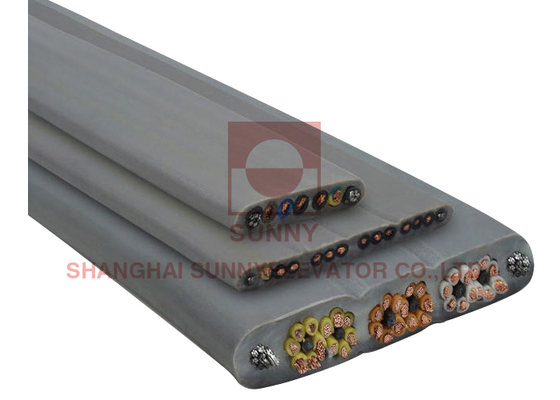

Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V

Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V
Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V
Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V

Large Image :  Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: TVVBPG PVC
Payment & Shipping Terms:
Minimum Order Quantity: 100meters
Price: Negotiation
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 meters/week
Contact Now

Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V

Description
Name: Insulated Shield Tostrengen Core Sector Elevator Cable Transportation: DHL TNT FEDEX
Warranty Time: 12 Months Applicable: Elevator Equipment
Category: Elevator Parts Rated Voltage: AC 300/500V
Model: Insulated Shield Tostrengen Core Sector Elevator Cable Product: Insulated Shield Tostrengen Core Sector Elevator Cable
Highlight:

insulated elevator cable 300/500V

,

shielded core sector elevator wire

,

elevator electrical parts power cable

Tostrengen Insulated Shield Core Sector Elevator Cable
Heavy-Duty Industrial Lift Cable With Enhanced Safety & Durability For High-Performance Applications
Product Specifications
Attribute Value
Name Insulated Shield Tostrengen Core Sector Elevator Cable
Transportation DHL TNT FEDEX
Warranty time 12 Months
Applicable Elevator Equipment
Category elevator parts
Rated Voltage AC 300/500V
Model Insulated Shield Tostrengen Core Sector Elevator Cable
Technical Details
Product standard: GB/T5023.6IEC60227-6
Rated voltage: TVVB 300/500V 0.75-1.0mm²
Operating temperature Range:
  • Conductor temperature below 70°C under normal conditions
  • Ambient temperature range: -15°C to +40°C
Mechanical properties:
  • Free hanging length: ≤80m
  • Travelling speed: ≤4m/s
Technical Specifications
Type voltage class Cores×Section (mm²) Type of conductor (mm) Max conductor resistance (Ω/km) Insulation resistance at 70℃
TVVBPG 300/500V 24×0.75+2P/2×0.75 0.6 ≤26.0 ≥0.011
TVVBPG 300/500V 30×0.75+2P/2×0.75 0.6 ≤26.0 ≥0.011
TVVBPG 300/500V 36×0.75+2P/2×0.75 0.6 ≤26.0 ≥0.011
TVVBPG 300/500V 48×0.75+2P/2×0.75 0.6 ≤26.0 ≥0.011
Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V 0 Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V 1 Insulated Shield Tostrengen Core Sector Elevator Cable 300/500V 2
Frequently Asked Questions
1. Are the elevator wire ropes durable?
Our elevator wire ropes meet special provisions and requirements. The configuration considers not only the wire rope and rated load but also the size of the traction. The tensile strength exceeds the lift weight with a safety factor of more than four, ensuring simultaneous breakage cannot occur.
2. Is it dangerous if power fails suddenly during elevator operation?
The elevator will automatically stop using electrical and mechanical safety devices. In case of power failure, elevator brakes engage automatically. Power supply departments typically provide prior notice for planned outages.
3. Will users be hurt if doors close suddenly?
Our doors feature automatic restart when touched during closing, along with anti-clamping switches that prevent closure when obstructed. The closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators operate via counterweight wire ropes through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature an integrated structure design for precision, efficiency, and easier commissioning without compromising functionality.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
