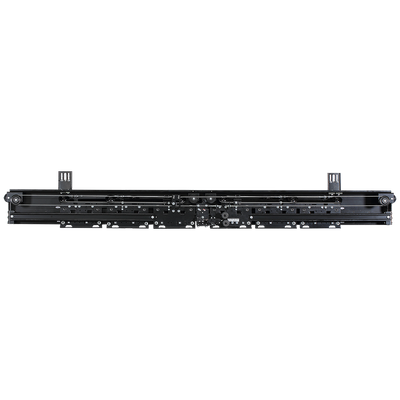

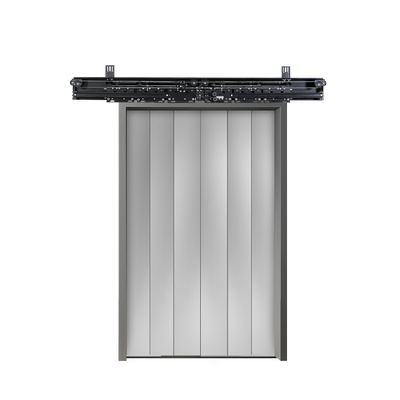

≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device

≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device
≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device
≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device ≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device ≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device

Large Image :  ≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-OCM-302
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $500~1200
Packaging Details: container
Delivery Time: 7~15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000pcs/month
Contact Now

≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device

Description
Name: 6-Leafs Center Opening Landing Door Device Product Name: 6-Leafs Center Opening Landing Door Device
JJ: 1800~3400MM Used: Elevator Parts
System: Elevator Control System Door Lock Voltages: ≤ AC230V、≤ DC110V
Transportation: Sea Delivery Applicable: Elevator Equipment
Model: 6-Leafs Center Opening Landing Door Device Type: 6-Leafs Center Opening Landing Door Device

≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device
Features:
◎The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft pendulum test, which conforms to GB/T7588.1/2 standard requirement
◎Door lock voltages ≤ AC230V,≤ DC110V
◎Using common weight self-closing type. Common weight is located on each side of landing door device
◎Standard floor height ≥ HH+700, lowest floor height HH+600
◎Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, and CE certificate. Level of protection is IP20

≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device
Close-up of landing door device components
Side view of 4-Leafs Center Opening Landing Door
Installation view of landing door device

≤ AC230V And≤ DC110V Voltage 6-Leafs Center Opening Landing Door Device

Detailed mechanism of door device
Frequently Asked Questions
Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength of wire rope exceeds the weight of the lift, with a safety factor of at least four wire ropes to prevent simultaneous breakage.
Is it dangerous for power failure suddenly during the elevator running?
In case of power failure, the elevator will automatically stop due to electrical and mechanical safety devices. Elevator brakes will engage automatically. Power supply departments typically provide prior notice for planned outages.
Will us be hurt when it closed suddenly?
During closing, if the door contacts a person, it will automatically reopen without danger. The anti-pinch switch prevents closure when obstruction is detected, and closing force is carefully regulated.
How the elevator running?
Elevators operate via counterweight wire ropes through traction drive, moving vertically along guide rails.
Is the escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, making installation and commissioning simpler and more convenient.
Do you have any cerifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
