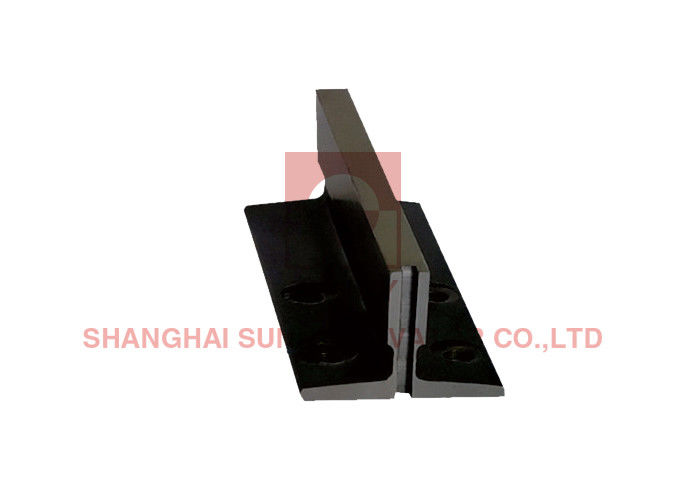

Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm

Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm
Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm
Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm

Large Image :  Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-GR Series Machined Guide rail
Payment & Shipping Terms:
Minimum Order Quantity: 10meter
Price: $2~8/meter
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 15000meters/month

Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm

Description
Name: Machined Guide Rails Type: Machined Guide Rails
Material: Metal Product Name: Machined Guide Rail
Size: 9mm, 10mm, 16mm Keyword: Linear Guide Rail
Model: Machined Guide Rails Product: Machined Guide Rails
High Light:

lift guide rail

,

guide rails for elevators

,

16mm Guide Rails For Elevators

Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm



SN-GR Series Machined Guide rail
Reliable and safety
Strong rigidity
Economical




GB/T22562-2008

Type/Parameter/Tolerance b1 h1 k p r1 m1 m2 t1 t2 b3 l2 l1 d
±0.5 ±0.2 ±0.15 ±0.5

±0.06
0

0
-0.06

±0.1 ±0.1 ±0.3 ±0.2 ±0.2
SN-GR-T45/A 45 45 5 5 1 2 1.95 2.5 2 25 65 15 9
SN-GR-T50/A 50 50 5 5 1 2 1.95 2.5 2 30 75 25 9



Type/Parameter/Tolerance b1 h1 k n c f g rs m1 m2 u1 u2 d d1 b3 l1 l2 l h
±1.5 ±0.75

+0.1
0

+3
0

  ±0.75 ±0.75 ±0.5 ±0.06
0

0

-0.06

±0.1

±0.1     ±0.2 ±0.2 ±0.2

+3
0

±0.1
SN-GR-T70/B 70 65 9 34 6 8 6 3 3 2.95 3.5 3 13 26 42 25 105 128 64
SN-GR-T75-3/B 75 62 10 30 8 9 7 3 3 2.97 3.5 3 13 26 42 25 105 138 61
SN-GR-T82/B 78 56 10 26 7 8.5 6 2.5 3 2.97 3.5 3 13 26 42 25 105 138 65
SN-GR-T89/B 89 62 16 34 10 11.1 7.9 3 6.4 6.37 7.14 6.35 13 26 57.2 38.1 114.3 156 61
SN-GR-T90/B 90 75 16 42 10 10 8 4 6.4 6.37 7.14 6.35 13 26 57.2 38.1 114.3 156 74
SN-GR-T114/B 114 89 16 38 9.5 11 8 4 6.4 6.37 7.14 6.35 17 33 70 38.1 114.3 156 88
SN-GR-T127-1/B 127 89 16 45 10 11 8 4 6.4 6.37 7.14 6.35 17 33 79.4 38.1 114.3 156 88
SN-GR-T127-2/B 127 89 16 51 10 15.9 12.7 5 6.4 6.37 7.14 6.35 17 33 79.4 38.1 114.3 156 88
SN-GR-T140-1/B 140 108 19 51 12.7 15.9 12.7 5 6.4 6.37 7.14 6.35 21 40 92.1 31.8 152.4 193 107
SN-GR-T140-2/B 140 102 28.6 51 17.5 17.5 14.5 5 6.4 6.37 7.14 6.35 21 40 92.1 31.8 152.4 193 101
SN-GR-T140-3/B 140 127 31.75 57 19 25.4 17.5 5 6.4 6.37 7.14 6.35 21 40 92.1 31.8 152.4 193 126




Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm 0Machined Guide rail



Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm 2



Machined Guide Rails For Elevators / Lift Guide Rail 9mm, 10mm, 16mm 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
