Product Details:
|
| Name: | Hospital Bed Lift | Load: | 1000~1600kg |
|---|---|---|---|
| Speed: | 1.0-1.75m/S | Model: | Hospital Bed Lift |
| Pit Depth: | 1500mm | Internal Car Size: | 1100*2100*2500 |
| Type: | Hospital Bed Lift | Keywords: | Passenger Elevator Lift |
| Control: | VVVF Elevator Control System | Warranty: | 12 Months After Shipping |
| High Light: | high speed lift,airport walking escalator |
||

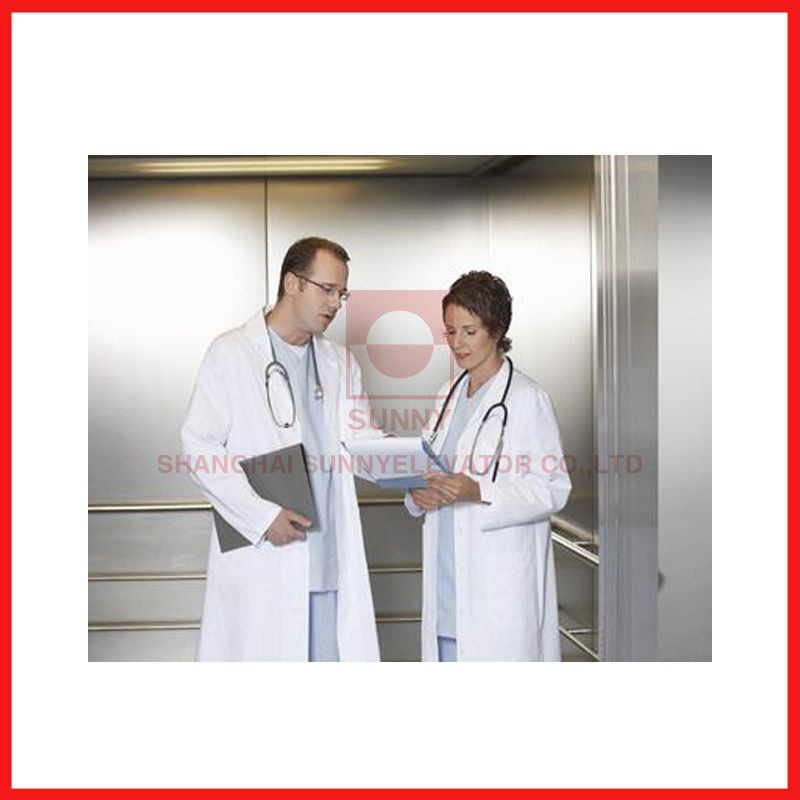

Restful Hospital Bed Lift People Oriented Cabin Design Load 1000 - 1600kg
There is a kind of care that makes no exceptions; a kind of consideration that has no end; a kind of safety that is close at hand; a kind of peace that is calm and restful. Ours medical elevators combine care, consideration, safety, and peace. They use a fully computerized, intelligent control system, 32-bit networked microprocessors, and a new type of data network control technology to realize intelligent elevator operations, which can increase the elevator utilization rate to the maximum. Our elevators reduce waiting time for patients and provide both patients and medical personnel with a transport environment that is smooth and comfortable. They use industry-leading permanent magnet synchronous traction machine and large-scale integrated circuits to realize elevator computerization, have low power consumption and a long service life. They are equipped with functions designed for medical use, manifesting meticulous, people-oriented care.
Our medical elevators are the ideal choice for medical and health organizations such as hospitals, health centers and sanatoria.
************************************************
For detail information, please contact us.
************************************************
Hospital elevator construction parameters
| Load(kg) | Speed(m/s) | Car size(mm) | Door opening size(mm) | Hoistway size(mm) | Machine room size |
Pit depth(mm) | Top floor height(mm) | Max.travelling height(m) |
| CW*CD*CH | OP*OPH | HW*HD | ||||||
| 1000 | 1.0 | 1100*2100*2500 | 900*2100 | 2100*2600 | 2100*2600*2800 | 1500 | 4500 | 25 |
| 1.5 | 1600 | 4600 | 50 | |||||
| 1.75 | 1700 | 4700 | 90 | |||||
| 1000 | 1.0 | 1100*2100*2500 | 1000*2100 | 2000*2700 | 2000*2700*2800 | 1500 | 4500 | 25 |
| 1.5 | 1600 | 4600 | 50 | |||||
| 1.75 | 1700 | 4700 | 90 | |||||
| 1600 | 1.0 | 1400*2400*2500 | 1100*2100 | 2550*2900 | 2550*2900*3000 | 1500 | 4500 | 25 |
| 1.5 | 1600 | 4600 | 50 | |||||
| 1.75 | 1700 | 4700 | 90 | |||||
| 1600 | 1.0 | 1400*2400*2500 | 1200*2100 | 2350*3000 | 2350*3000*3000 | 1500 | 4500 | 25 |
| 1.5 | 1600 | 4600 | 50 | |||||
| 1.75 | 1700 | 4700 | 90 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
