Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening

Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening

Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening
Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening
Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DM-302 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Name: Center Opening Door Device JJ: 1800~3400mm
Voltage: ≤AC230V,≤DC110V Certificate: CE,CU-TR
Packing: Wooden Box Applicable: Elevator Equipment
Category: Elevator Parts Product Name: Elevator Door Operator
High Light:

Landing Lift Door Operator

,

Permanent Magnet Lift Door Operator

,

Center Opening Lift Door Operator

6-Leafs Center Opening Permanent Magnet / Landing Door Operator



SN-DM-302A(Car Top Insalltion) SN-DM-302B(Straight Beam Insalltion)

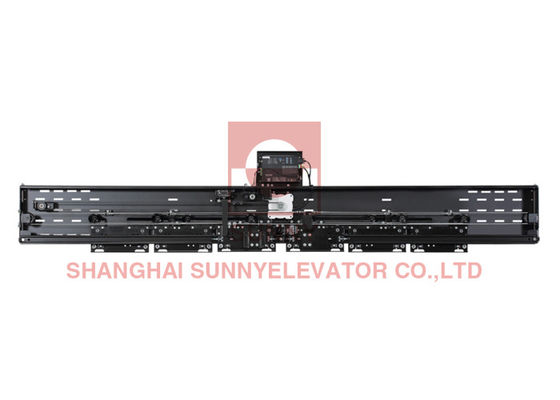

6-Leafs Center Opening Permanent Magnet Door Operator

·Using permanent magnet high-power motor, wide torque range, high efficiency, environmental protection, energy saving
·The synchronous vane is equipped with door lock function, the door operator and landing door device 100% opened or closed synchronously
·The synchronous belt drive directly, no slip, running smoothly in lower noise
·Full-closed-loop control technology, safe, reliable and easy to adjust
·The door hanger has a safety hook to prevent ollision and fall off



SN-DM-302

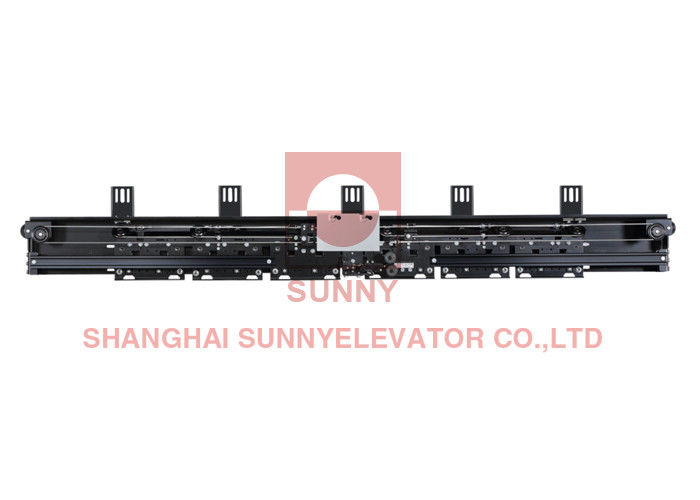

6-Leafs Center Opening Landing Door Device
·Closing by weight type, weight and guiding pipe fixed at inner side of landing panel
·Unlocking hole on landing panel, passed 45kg pendulum impact test
·Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, with CE. CU-TR cerificate
·Voltage for door lock:≤AC230V,≤DC110V





SN-DM-302A
JJ 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400
A1L 2450 2584 2716 2850 2984 3116 3250 3384 3516 3650 3784 3916 4050 4184 4316 4450 4584
A2L 175 192 208 225 242 258 275 292 308 325 342 358 375 392 408 425 442
A3L 360 385 410 435 460 485 510 535 560 585 610 635 660 685 710 735 760





Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening 0

Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening 1



Permanent Magnet Landing Lift Door Operator 6 Leafs Center Opening 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
