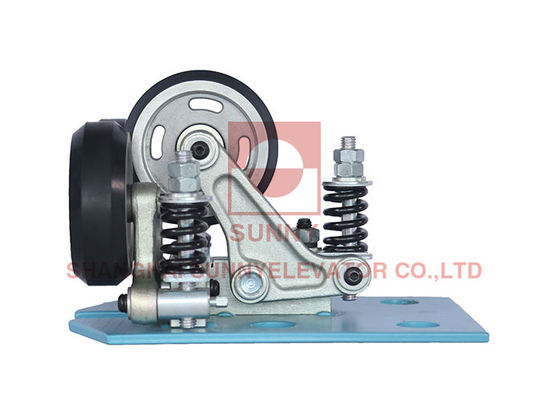

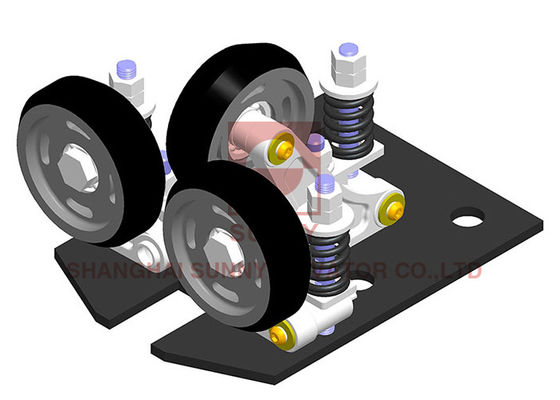

Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin

Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin

  • Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin
  • Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin
Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Elastic roller guide shoe
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 10000 Pcs/ Month
Contact Now
Detailed Product Description
Rated Speed: 2.5m/s Width Of Guide Rails: 10mm/16mm
Model: Elastic Roller Guide Shoe Rail: 10/16mm
Business: Manufacturer Used: Elevator Parts
Warranty Time: 12 Months Transportation: Sea Transportation
High Light:

Passenger Elevator Roller Guide Shoe

,

Elevator Lift Elastic Roller Guide Shoe

,

2.5m/S Elastic Roller Guide Shoe

Elastic Roller Guide Shoe For Cabin Of Passenger Elevator Lift







Rated Speed(m/s) ≤2.5 ≤3.0 2.5~4.0 4.0~6.0
Rail width(mm) 10/16 10/16 16 16

Diameter of roller

70 90 140 160

Normal load

550 800 1000 1200

External dimension
(LxWx H)(mm)

235x170x129 220x196x150 230x296x210 215x336x246







Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin 0





Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin 1



Passenger Elevator Lift Elastic Roller Guide Shoe 2.5m/S For Cabin 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
