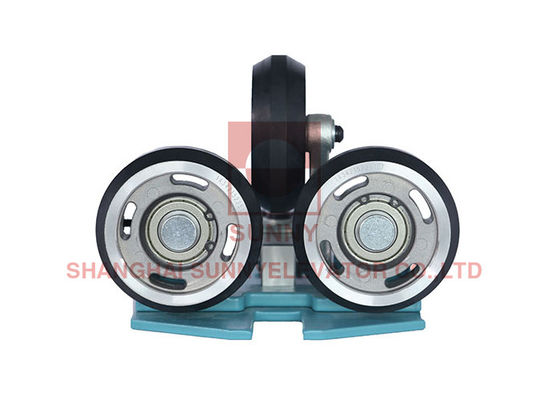

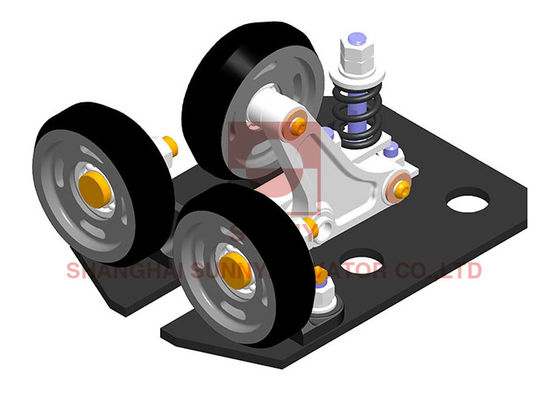

550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S

550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S

  • 550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S
  • 550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S
550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Semi-elastic roller guide shoes
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $5~50
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 10000 Pcs/ Month
Contact Now
Detailed Product Description
Rated Speed: 1.75m/s Width Of Guide Rails: 10mm/16mm
Model: Elastic Roller Guide Shoe Rail: 10/16mm
Business: Manufacturer Used: Elevator Parts
Warranty Time: 12 Months Transportation: Sea Transportation
High Light:

550kg Load Access Elevator Parts

,

16mm Rail Roller Guide Shoes

,

1.75m/S Semi Elastic Roller Guide Shoes

550 Load Semi-Elastic Roller Guide Shoes For Access Elevator Parts





Rated Speed(m/s) ≤1.75 ≤2.5 ≤3.0
Rail width(mm) 10/16 10/16 16

Diameter of roller

50 70 90

Normal load

550 550 800

External dimension
(LxWx H)(mm)

112x146x90

121x174x111

174x225x110

225x196x130



550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S 0



550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S 1



550kg Load Access Elevator Parts Semi Elastic Roller Guide Shoes 1.75m/S 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
