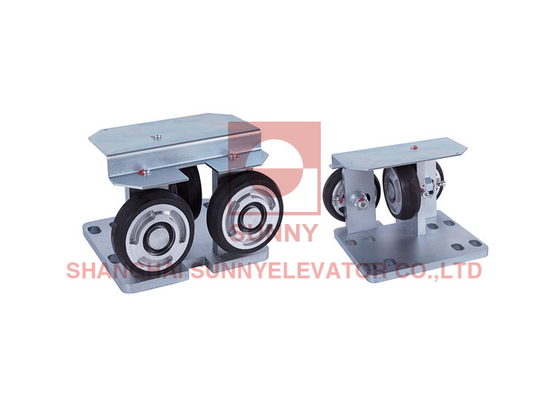

Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail

Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail

  • Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail
  • Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail
Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-GD80
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Elevator Guide Shoes Width Of Guide Rail: 9mm/10mm/16mm
Rated Speed: 1.0m/s Transportation: Sea Transportation
Applicable: Passenger Elevator Material: 304 Stainless Steel Or Customizable
Warranty Time: 12 Months Type: Elevator Parts
Keywords: Elevator Parts Roller Voltage: Customizable
High Light:

Dia 80mm Elevator Roller Guide Shoe

,

Elevator Roller Guide Shoe 1.0m/s

,

SS304 Elevator Roller Guide Shoe

Elevator Roller Guide Shoe With 80 Dia For 9/10/16 Guide Rail



Type
Style
Roller Dia.

Rated Speed

Rail Width
Rated Load

A

Car Rated Load
(Sug.)

CAR
CWT
K
Normal
Braking
SN-GD80
Fixed
Ø80mm
1.0m/s
2.0m/s
9mm
200N
1000N
18mm
1200KG
Fixed
Ø80mm
1.0m/s
2.0m/s
10mm
200N
1000N
18mm
1200KG
Fixed
Ø80mm
1.0m/s
2.0m/s
16mm
200N
1000N
25mm
1200KG
Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail 0





Type
Style
Roller Dia.

Rated Speed

Rail Width
Rated Load

A

Car Rated Load
(Sug.)

CAR
CWT
K
Normal
Braking
SN-GH80
Fixed
Ø80mm
N/A
2.0m/s
9mm
450N
1000N
18mm
2500KG
Fixed
Ø80mm
N/A
2.0m/s
10mm
450N
1000N
18mm
2500KG
Fixed
Ø80mm
N/A
2.0m/s
16mm
450N
1000N
18mm
2500KG
Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail 1



Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail 2



Dia 80mm Elevator Roller Guide Shoe 1.0m/S For 16mm Guide Rail 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
