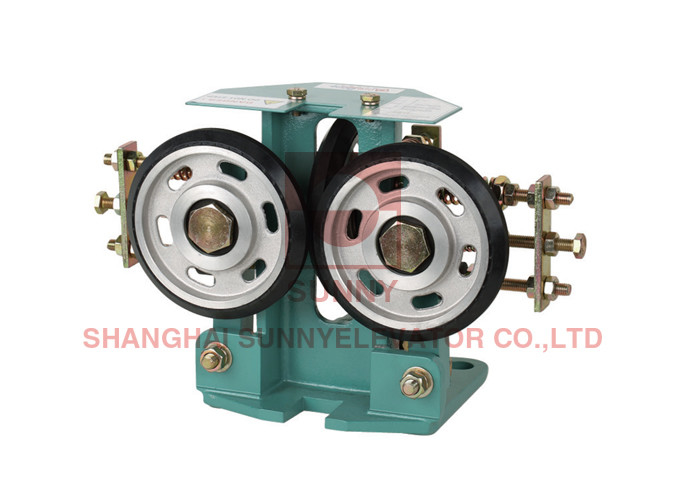

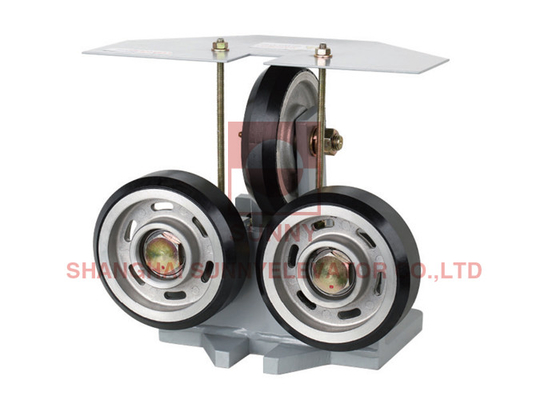

304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car

304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car

  • 304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car
  • 304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car
304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-SGS-CB150DS
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: $5~50
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Elevator Guide Shoe Width Of Guide Rail: 9mm/10mm/16mm/19mm
Rated Speed: 4.5 M/s Transportation: Sea Transportation
Applicable: Passenger Elevator Material: 304 Stainless Steel Or Customizable
Warranty Time: 12 Months Type: Elevator Guide Shoe
Keywords: Elevator Guide Shoe Voltage: Customizable
High Light:

304 Stainless Steel Roller Guide Shoe

,

Elastic Elevator Guide Shoe

,

Elevator Car Roller Guide Shoe

Elastic Roller Elevator Guide Shoe High Quality Roller Guide Shoe For Elevator Car



Technical Parameter



Model SN-SGS-CB150DS
Speed CWT:7.0m/s,CAR:4.5m/s
Rail Type 13K,18K,24K,30K
Max Rated Load 2000kg
Diameter Φ150
Width,Overall 395.8/401.8/404.8mm
Length,Overall 222.4/230.4mm
Height,Overall 246mm
Mounting Hole 4-24mm
Hole Range Front75mmxSide140mm
Applicable guide 9mm,10mm,16mm,19mm
304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car 0





Model SN-SGS-CB150FS
Speed CWT:3.0m/s,CAR:2.0m/s
Rail Type 18K,24K,30k
Max Rated Load 5000kg
Diameter Φ150
Width,Overall 325mm
Length,Overall 287mm
Height,Overall 294mm
Mounting Hole 4-24mm
Hole Range Front75mmxSide140mm
Applicable guide 16mm,19mm
304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car 1



304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car 2



304 Stainless Steel Elastic Roller Guide Shoe For Elevator Car 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
