10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts

10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts

  • 10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts
  • 10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts
  • 10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts
  • 10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts
10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: WRG80
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: $5~50
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Elevator Guide Shoes Width Of Guide Rail: 9/10/16mm
Rated Speed: 2.5 M/s Transportation: Sea Transportation
Applicable: Passenger Elevator Material: 304 Stainless Steel Or Customizable
Warranty Time: 12 Months Type: Elevator Parts
Keywords: Elevator Parts Roller Voltage: Customizable
High Light:

Elevator Roller Guides Shoes

,

Medium Speed Elevator Roller Guides Shoes

,

10m/S Roller Guide Shoe

For Elevator / Lift Parts Door Roller Guide Shoes Elevator Parts

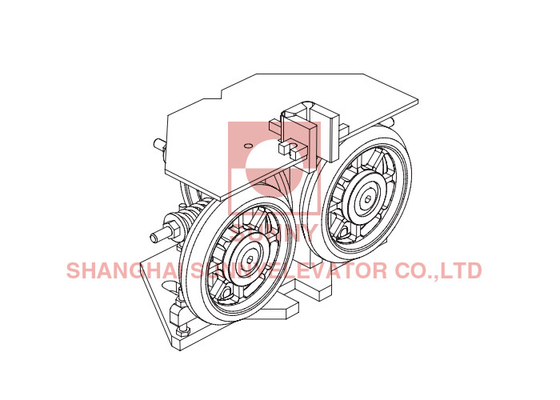

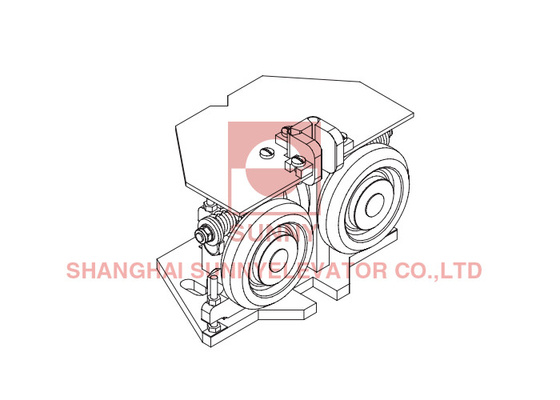

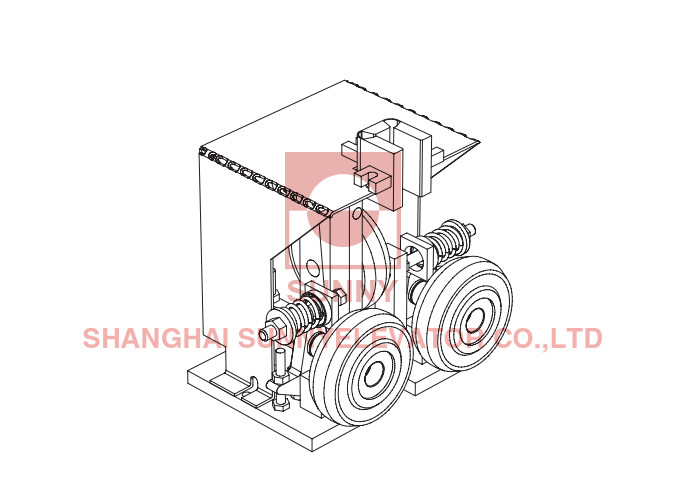

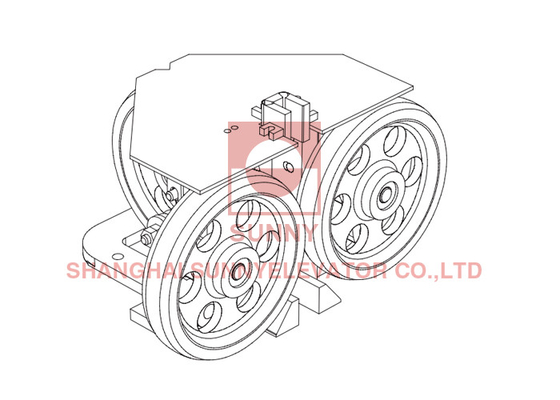

The roller guides shoes WRG can be placed on both cars and counterweights frames, for medium and high speed lifts (up to 10,0 m/s).

Depending on the model, they are suitable for guide rails with head thickness from 9 to 32 mm.

  • All rollers are separately spring-loaded ensuring maximum ride comfort
  • Uniform design concept - optimised for its field of application
  • Suitable for T-Profile guide rails only
  • Experienced technology for an absolute smooth ride
  • Roller guides are pre-assembled and adjusted for installation
  • Fitting kit for the exact installation of the roller guides is included



WRG Type CAR CWT max. Rated Speed V [m/s] Guide Rail [mm]
WRG80 - yes 2,5 9/10/16
WRG100 4
WRG125 7,0
WRG150(HD) yes 9/16/19/28,6
WRG200 10,0 16/19/28,6/31,75
WRG300 yes



10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts 0



10m/S Elevator Roller Guides Shoes For Medium High Speed Lifts 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
