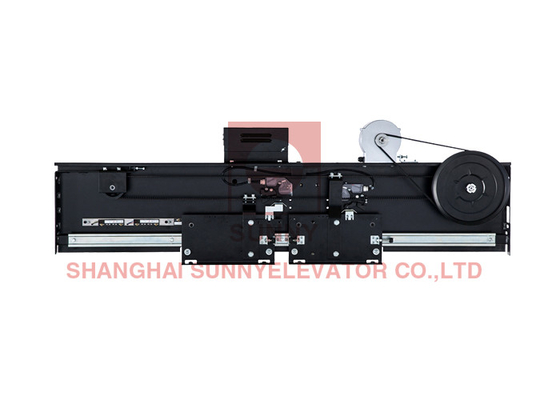

Elevator Center Opening VVVF Door Operator For Lift Door System

Elevator Center Opening VVVF Door Operator For Lift Door System
Elevator Center Opening VVVF Door Operator For Lift Door System
Elevator Center Opening VVVF Door Operator For Lift Door System Elevator Center Opening VVVF Door Operator For Lift Door System Elevator Center Opening VVVF Door Operator For Lift Door System

Large Image :  Elevator Center Opening VVVF Door Operator For Lift Door System

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DM-NB131-06/A06
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month
Contact Now

Elevator Center Opening VVVF Door Operator For Lift Door System

Description
Name: VVVF Door Operator Door Opening: 650mm-1200mm
Voltage: AC220V Business Type: Manufacturer
Warranty Time: 12 Months Transportation: Sea Delivery
Applicable: Elevator Equipment Opening Way: Centre/Side Opening
Model: VVVF Door Operator Type: VVVF Door Operator
Highlight:

Elevator Center Opening VVVF Door Operator

,

Lift Door System VVVF Door Operator

,

1200mm Lift Door Operator

Elevator Center Opening VVVF Door Operator for lift door system



The Elevator Center Opening VVVF Door Operator is an advanced and highly efficient system designed to control the operation of elevator doors, particularly those that open from the center. This system utilizes Variable Voltage Variable Frequency (VVVF) technology, which ensures smooth, precise, and energy-efficient door movement. It is widely used in modern elevator systems due to its reliability, adaptability, and enhanced performance.

The center-opening door mechanism involves two door panels that slide open in opposite directions, meeting at the center. The VVVF Door Operator regulates the speed and torque of the motor driving these panels, ensuring a quiet, seamless, and safe operation. By adjusting the voltage and frequency supplied to the motor, the system can control the acceleration, deceleration, and speed of the doors, providing a comfortable experience for passengers while minimizing wear and tear on mechanical components.

Safety is a key feature of this system, with integrated sensors and safety edges to detect obstructions and prevent the doors from closing if an object or person is in the way. Additionally, the system can be programmed to adjust door operation based on traffic patterns, improving efficiency in high-use environments.

The Elevator Center Opening VVVF Door Operator is known for its durability, low maintenance requirements, and compatibility with various elevator configurations. It plays a vital role in ensuring passenger safety, accessibility, and the overall reliability of modern elevator systems.



PRODUCT FEATURES

  1. Using VVVF control technology, Panasonic door controller is used for 06 type,
  2. NSFC01-01A door controller is used for A06 type
  3. Using one-level speed-down, synchronous belt transmission, stable and reliable running
  4. Using asyn. door clutch, car frame, top installation, optional car door lock
  5. Total door panel weight≤200kg; Voltage:200-250 V, 50 /60 Hz

Elevator Center Opening VVVF Door Operator For Lift Door System 0





JJ 650 700 750 800 850 900 950 1000 1050 1100 1200
A1 1360 1460 1560 1660 1760 1860 1960 2060 2160 2260 2460
B1 200 225 250 275 300 325 350 375 400 425 475



Elevator Center Opening VVVF Door Operator For Lift Door System 1



Elevator Center Opening VVVF Door Operator For Lift Door System 2



Elevator Center Opening VVVF Door Operator For Lift Door System 3



Elevator Center Opening VVVF Door Operator For Lift Door System 4Elevator Center Opening VVVF Door Operator For Lift Door System 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
