160 S5-25%ED 180s/H Elevator Gearless Traction Machine For 10mm Pitch

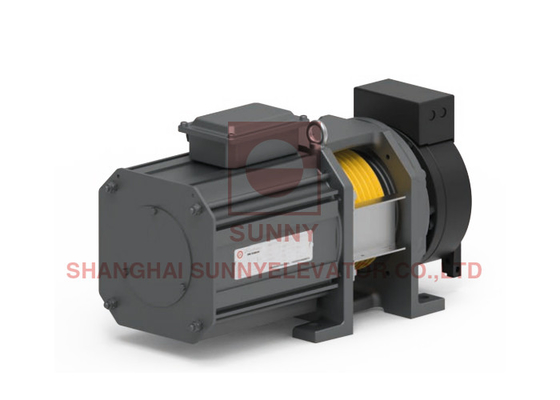

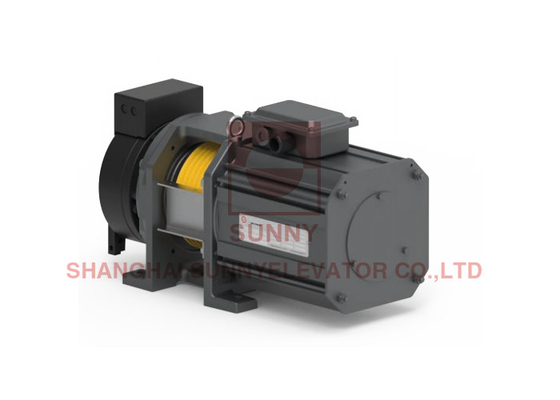

Large Image : 160 S5-25%ED 180s/H Elevator Gearless Traction Machine For 10mm Pitch

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-MDQ16HL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pcs
Price:	$500~1200
Packaging Details:	Wooden box
Delivery Time:	7~15 days
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	5000 Pcs/ Month

Contact Now

160 S5-25%ED 180s/H Elevator Gearless Traction Machine For 10mm Pitch

Description

Product Name:	Elevator Gearless Traction Machine	Voltage:	380V
Suspension:	2:1	Load:	260-320KG
Weight:	83kg	Max.Static Load:	2000kg
Applicable:	Elevator Equipment	Warranty Time:	One Year
Model:	Elevator Gearless Traction Machine	Product:	Elevator Gearless Traction Machine
Type:	Elevator Gearless Traction Machine
Highlight:	Residential Lift Gearless Motor , 10mm Pitch Gearless Traction Machine , 180s/H Elevator Gearless Traction Machine

160 S5-25%ED 180s/H Elevator Gearless Traction Machine For 10mm Pitch

Static load:2000kg
Load:450kg
Speed:up to 0.4m/s
Sheave:120-160mm
Weight:83kg

Nominal Torque	Short circuited torque	Poles	Encoder
Nm	Nm	/	/
160 S5-25%ED 180s/h	160	16	ERN1387 ECN1313 EI53C9.25 TS5213N2531
Brake
EMFR DC110V/1.4A[2X125Nm]

/		Ropes
ØD	F	Ø	n°	Pitch
mm		mm		mm
120	82	6.5	6	10
160		6

1:1	Load		Ø	Ropes	Pitch	Torque	Power	RPM	Freq.	Current 220V	Current 380V
	kg	m/s	mm	max	mm	Nm	kW	RPM	Hz	A	A
	260	0.3	160	6xØ6	10	113	0.43	36	4.8	5.4	5.4
	320	0.3	160	6xØ6	10	140	0.52	36	4.8	6.7	6.7
	260	0.3	160	6xØ6.5	10	85	0.43	48	6.4	4.1	4.1
	320	0.3	160	6xØ6.5	10	105	0.52	48	6.4	5.0	5.0
	260	0.4	120	6xØ6.5	10	85	0.57	64	8.5	4.1	4.1
	320	0.4	120	6xØ6.5	10	103	0.69	64	8.5	4.9	4.9

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
