High-Efficiency High-Speed Double-Support Integrated Elevator Traction Machine with EEI ≤1

Large Image : High-Efficiency High-Speed Double-Support Integrated Elevator Traction Machine with EEI ≤1

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-GTNH2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pcs
Price:	$5400
Packaging Details:	Wooden box
Delivery Time:	7~15 days
Payment Terms:	Western Union,T/T,L/C,Paypal
Supply Ability:	5000 Pcs/ Month

Contact Now

High-Efficiency High-Speed Double-Support Integrated Elevator Traction Machine with EEI ≤1

Description

Product Name:	Elevator Traction Machine	Voltage:	380V
Suspension:	2:1	Load:	1000~2000kg
Weight:	1120kg	Max.Static Load:	14000kg
Applicable:	Elevator Equipment	Warranty Time:	One Year
Model:	Elevator Traction Machine	Product:	Elevator Traction Machine
Type:	Elevator Traction Machine
Highlight:	High-Efficiency Elevator Traction Machine , High-Speed Gearless Traction Machine , Double-Support Integrated Traction Motor

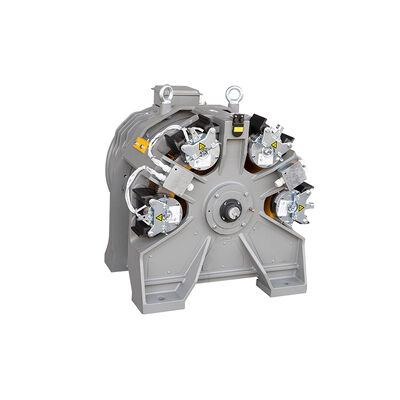

High-Efficiency High-Speed Double-Support Integrated Elevator Traction Machine With EEI ≤1

High-Efficiency High-Speed Double-Support Integrated Elevator Traction Machine with EEI ≤1

ELEVATOR TRACTION MACHINE

Suspension:	2:1
Voltage:	380V
Pole:	20
Rating:	S5(50%)
INS. Class:	F
IP Code:	IP21
Max.Static Load:	14000KG
Weight:	1120KG
PZD140B Brake:	DC110V 2×0.89A
PZD140 Brake:	DC110V 4×0.69A

Technical Specifications

Type	Load(kg)	Speed(m/s)	Sheave Dia.(mm)	Rope Groove (mm)	Double Roping	Current (A)	Torque (Nm)	Rated Speed (rpm)	Frequency (Hz)	Power (kw)
GTNH2-103P0	1000	3.0	Φ560	10xΦ13x18	YES	42.8	955	205	34.2	20.5
GTNH2-104P0	1000	4.0	Φ560	10xΦ13x18	YES	56.5	955	273	45.5	27.3
GTNH2-123P0	1250	3.0	Φ560	10xΦ13x18	YES	53.3	1190	205	34.2	25.5
GTNH2-124P0	1250	4.0	Φ560	10xΦ13x18	YES	72	1190	273	45.5	34
GTNH2-133P0	1350	3.0	Φ560	10xΦ13x18	YES	57.2	1290	205	34.2	27.7
GTNH2-134P0	1350	4.0	Φ560	10xΦ13x18	YES	75.5	1290	273	45.5	36.9
GTNH2-162P5	1600	2.5	Φ560	12xΦ13x18	YES	56.5	1525	171	28.5	27.3
GTNH2-163P0	1600	3.0	Φ560	12xΦ13x18	YES	69.5	1525	205	34.2	32.7
GTNH2-164P0	1600	4.0	Φ560	12xΦ13x18	YES	93	1525	273	45.5	43.6
GTNH2-165P0	1600	5.0	Φ695	12xΦ13x18	YES	120	1910	273	45.5	54.3
GTNH2-202P5	2000	2.5	Φ560	12xΦ13x18	YES	72	1910	171	28.5	34.2
GTNH2-203P0	2000	3.0	Φ560	12xΦ13x18	YES	90	1910	205	34.2	41
GTNH2-204P0	2000	4.0	Φ560	12xΦ13x18	YES	120	1910	273	45.5	54.3
GTNH2-165P0	1600	5.0	Φ695	22xΦ10x12.7	YES	120	1910	273	45.5	54.3
GTNH2-185P0	1800	5.0	Φ695	22xΦ10x12.7	YES	136	2150	273	45.5	61.5

Frequently Asked Questions

1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. As a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire ropes, so they won't break simultaneously.

2. Is it dangerous if power fails suddenly during elevator operation?

If power failure occurs, the elevator will automatically stop due to electrical and mechanical safety devices. In case of power failure, elevator brakes will automatically engage. Additionally, power supply departments typically provide prior notice for planned outages.

3. Will users be hurt if the doors close suddenly?

During the closing process, if someone touches the hall door, the elevator door will automatically reopen without any danger. With anti-pinch switches, once the door is touched, this switching action prevents the elevator from closing and causes it to reopen. Additionally, closing force is carefully controlled for safety.

4. How does the elevator operate?

Elevators are operated with a counterweight wire rope system through the traction drive, moving up and down on guide rails.

5. Is escalator installation complicated?

We believe escalator functions are not necessarily proportional to operation complexity. Therefore, our escalators apply an integrated structure, making the equipment more precise and efficient while allowing easier and more convenient commissioning.

6. Do you have any certifications?

Yes, we hold ISO9001, CCC, and CE Certificates for our products.
