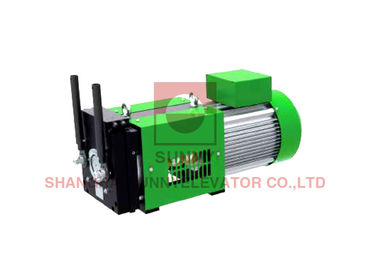

Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts

Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts

  • Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts
  • Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts
Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DX-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Product Name: Elevator Gearless Traction Machine Weight: 165kg
Brake: DC110V 2*1.1A Duty: S5 40%
Max.static Load: 4000kg Transportation: DHL TNT FEDEX
Applicable: Elevator Equipment Warranty Time: 12 Months
Model: Elevator Gearless Traction Machine Product: Elevator Gearless Traction Machine
High Light:

elevator traction machine

,

lift traction machine

Elevator Gearless Traction Motor / Traction Belt For Elevator Parts

Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts



Load 800kg
Voltage 380v
Suspension 2:1
Center height 132mm
Weight 165kg
Max.static load 4000kg
Brake DC110V 2*1.1A
Duty S5 40%



General data kg m/s V mm P n kW r/min N.m Hz V A
Load

Lift

speed

Phase

voltage

Sheave

dia

Poles

Traction

belt qty

Rated

power

Rated

speed

Rated

torque

Frequ

ency

Rated

Voltage

Rated

Current

SN-DX-800-10-34 800 1 3/380 104 10 3 5.4 367 141 30.6 318 12.5
SN-DX-800-16-34 800 1.6 3/380 104 10 3 8.6 588 140 49 322 18.6
SN-DX-800-17.5-34 800 1.75 3/380 104 10 3 9.4 643 140 53.6 328 19.9
SN-DX-800-20-34 800 2 3/380 104 10 3 10.7 735 139 61.3 323 23.2



Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts 0

 Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts 1

Long Life Elevator Gearless Traction Motor / Traction Belt For Elevator Parts 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
