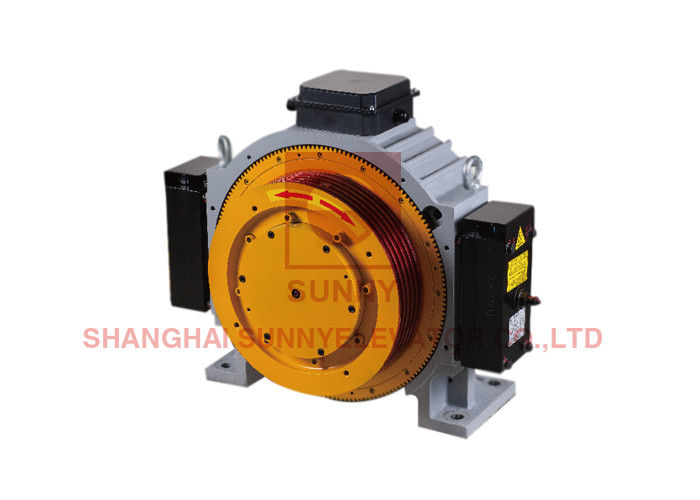

Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance

Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance
Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance

Large Image :  Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-KGT-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance

Description
Name: Elevator Traction Motor Load: 450~1050KG
Speed: 0.5~2.0m/s Voltage: AC380V
Weight: 300/36.KG Roping: 2:1
Product Name: Elevator Parts Color: Black Red Blue Gray
Application: Elevator.lift Material: Stainless Steel
Model: Elevator Traction Motor Type: Elevator Traction Motor
High Light:

elevator traction machine

,

lift traction machine

Load 450kg~1050kg elevator traction motor for passenger elevator

SN-KGT-T SERIES

Rated voltage:AC380V
Suspension:2:1
Rope:Single
Load:450kg~1050kg
Speed:0.5m/s~2.0m/s
Prot. Class:IP41
INS.CLASS:F
Num. of Start:240Times/hour
Working System:S5-40%

Num. of Pole-pairs:10



SN-KGT-T ELEVATOR TRACTION MACHINE(ROPING 2:1)

Type

Load

(kg)

Speed

(m/s)

Sheave

(mm)

Num (mm)

Pitch

(mm)

Current

(A)

Motor

Speed

(rpm)

Frequency

(Hz)

Power

(kW)

Torque

(Nm)

Load

(kg)

Weight

(kg)

A B C D E F
T0.5A 450 0.5 400 4 Φ10 16 4.2 48 8 1.6 320 2500 ≈300 140 195 47.5 29.5 306 385
T1.0A 1 7.7 96 16 3.2
T1.5A 1.5 10.8 144 24 4.8
T1.6A 1.6 12 153 26 5.1
T1.75A 1.75 12.4 168 28 5.6
T2.0A 2 14.5 192 32 6.4
T0.5B 630 0.5 4 5.6 48 8 2.3 460
T1.0B 1 10.4 96 16 4.6
T1.5B 1.5 15.3 144 24 6.9
T1.6B 1.6 15.9 153 26 7.4
T1.75B 1.75 17.8 168 28 8.1
T2.0B 2 20.2 192 32 9.3
T0.5C 800 0.5 5 6.8 48 8 2.8 550

333

/

3500

≈360 170 225 47.5 29.5 336 415
T1.0C 1 12.7 96 16 5.5
T1.5C 1.5 18.2 144 24 8.3
T1.6C 1.6 19.8 153 26 8.8
T1.75C 1.75 21.7 168 28 9.7
T2.0C 2 24 192 32 11
T0.5D

1000

/

1050

0.5 5 7.8 48 8 3.4 665 3500
T1.0D 1 14.9 96 16 6.7
T1.5D 1.5 22.2 144 24 10
T1.6D 1.6 24.6 153 26 10.7
T1.75D 1.75 26 168 28 11.7
T2.0D 2 29.6 192 32 13.4



SN-KGT-T DIMENSION DRAWING

Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance 0



Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance 1



Load 1050kg Passenger Elevator Traction Motor Single Rope High Performance 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
