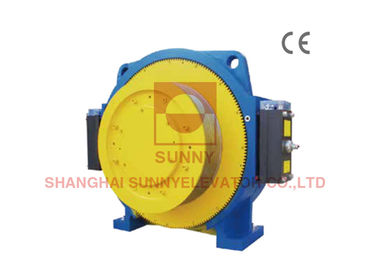

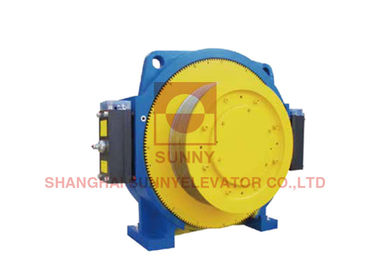

2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use

2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use
2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use 2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use

Large Image :  2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-WYT-U
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use

Description
Load: 1350kg ~ 2000kg Voltage: 380V
Speed: 1.0m/s ~ 2.5m/s Roping: 2:1
Product Name: Elevator Traction Machine Warranty Time: 12 Months
Applicable: Elevator Equipment Transportation: Sea Delivery
Application: Elevator.lift Material: Stainless Steel
Type: Elevator Traction Machine Model: Elevator Traction Machine
High Light:

2000kg Elevator Traction Machine

,

2.5m/S Elevator Traction Machine

1350kg ~ 2000kg PM Traction Machine Use Overheating Protection Device

2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use



SN-WYT-∪series products are designed with large torque and heavy load capacity. It is widely used in high-rise buildings elevator
applications such as panorama elevator, passenger & cargo elevator, hospital bed elevator and else.



Parameter of Traction Machine

Voltage : AC380V
Roping: 2:1
Wrap : Single
Capacity: 1350kg ~ 2000kg
Speed : 1.0m/s ~ 2.5m/s
Protection Grade : IP41
Ins. Class: F
Traction machine pole: 30
Stars per hour: 240
Rating: S5-40%

Elevator Height:

≤120m



Features

Low-speed operation is smooth, high efficiency, large torque;
Use high performance permanent magnetic materials and improve the magnetic circuit structure, so that the temperature rise and noise are much lower than industry standard.
Traction machine use overheating protection device, with extra safety & reliability;
Use block type armless brake, simple structure with fast response time and high reliability.



Outline drawing

2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use 0



2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use 1



2.5m/S 380V Load 2000kg Elevator Traction Machine For Feight Elevator Use 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
